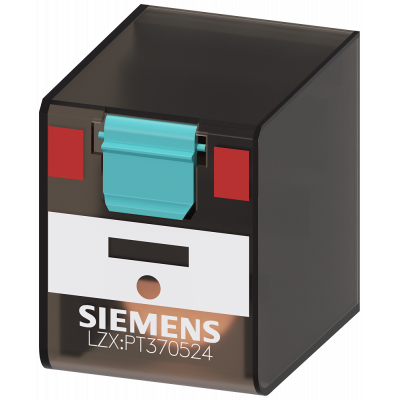

Plug-in relay, 3 change-over contacts, 24 V AC, 10 A, W=22.5 mm also for LZS base
5.78€
Включая НДС
Артикул: LZX:PT370524
ВТЫЧНОЕ РЕЛЕ , 3 П КОНТАКТА, 24V AC, 10A, ШИРИНА 22.5MM Plug-in relay SIRIUS LZX as a single module in combination with LZS plug-in base for galvanic isolation, contact multiplication, for switching small loads and as a means of switching potential.
The plug-in relays allow flexibility in the design of the device as a whole and can be replaced easily.
Single modules are available in the designs RT, PT and MT, as well as in various coil voltages.
SIRIUS relays - one range for every application.
Параметры
| Nominal current | - |
| Width | 22.5 |
| Height | 28.0 |
| Depth | 35.0 |
| With detachable clamps | Нет |
| Drive, polarization | Polarized |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | Нет |
| Type of switch contact | Simple contact |
| Complete with socket | Нет |
| Type of electric connection | - |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Degree of protection (IP) | - |
| With LED indication | - |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 3 |
