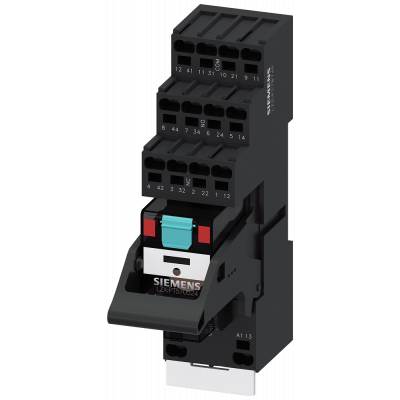

Plug-in relay complete unit 24 V AC, 4 change-over contacts LED module red base

КОМПАКТНОЕ ВТЫЧНОЕ РЕЛЕ 24V AC, 4 П КОНТАКТА, СВЕТОДИОД КРАСНЫЙ, ЦОКОЛЬ С ЛОГИЧЕСКИМ РАЗДЕЛЕНИЕМ ВТЫЧНЫЕ КЛЕММЫ (PUSH-IN) Coupling relay with plug-in relay SIRIUS LZS for galvanic isolation, contact multiplication, and switching small loads and as a means of switching potential. The coupling relays feature wiring without tools and vibration-proof connection thanks to push-in spring-loaded terminals. Bases with logical separation enable easy wiring. The switching capacity has been tested according to A-15 and DC-13. Thanks to hard gold plated contacts, optimal interaction with electronic controls is ensured. Devices are available as complete units or as single modules in the designs RT, PT and MT, with or without logical separation, in various coil voltages as well as with screw-type or push-in terminals. Extensive accessories are available such as plug-in base, holding/ejection bracket, wiring bracket and LED modules. SIRIUS relays - one range for every application.

Параметры

Nominal current	-
Width	28.0
Height	98.0
Depth	79.0
With detachable clamps	Нет
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
With forced-guided contacts	Нет
Type of switch contact	Simple contact
Complete with socket	Да
Type of electric connection	Spring clamp connection
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	-
Degree of protection (IP)	IP20
With LED indication	Да
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	4
