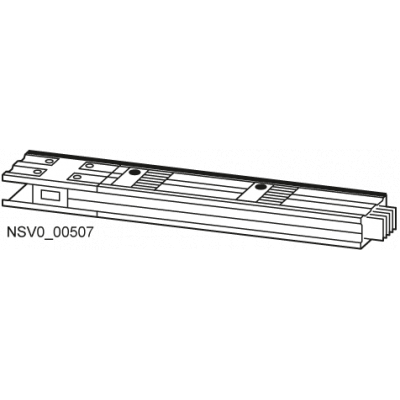

BD2A-3-160-SB-2 STANDARD LENGTH 2,25M 160A, N + PE, 8 TAP OFFS
по запросу
Артикул: BVP:261479
BD2A-3-160-SB-2 STANDARD LENGTH 2,25M 160A, N + PE, 8 TAP OFFS
Параметры
| Colour | Grey |
| Width | 167.0 |
| Model | - |
| Height | 68.0 |
| Flexible | Нет |
| RAL-number | 7035 |
| Number of conductors (without earthing) | 4 |
| Number of poles | 5 |
| Length | 225.0 |
| Degree of protection (IP) | - |
| Rated voltage at AC 50 Hz | 690 |
| Number of tap-off units | 8 |
| Rated current at AC 50 Hz | 160 |
| Length busbar trunk | 2250.0 |
| Degree of protection (NEMA) | - |
