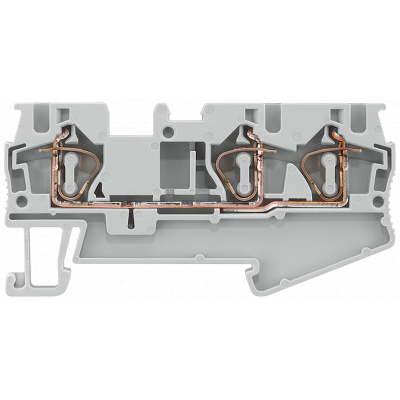

КЛЕММА ПРОХОДНАЯ ПРУЖИННОЕ ПОДСОЕДИНЕНИЕ, 3 ПОДСОЕДИНЕНИЯ: 0.5 - 4 MM2, ШИРИНА: 6.2 MM, СЕРАЯ

КЛЕММА ПРОХОДНАЯ ПРУЖИННОЕ ПОДСОЕДИНЕНИЕ, 3 ПОДСОЕДИНЕНИЯ: 0.5 - 4 MM2, ШИРИНА: 6.2 MM, СЕРАЯ Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Mounting method	DIN rail (top hat rail) 35 mm
Colour	Grey
Rated voltage	800
Length	-
Operation temperature	-25
Inflammability class of insulation material acc. with UL94	V0
Width/grid dimension	6.2
Height at lowest possible mounting height	-
Closing plate required	Нет
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	3
Internally connected stages	Нет
Connectable conductor cross section solid-core	6.0
Connectable conductor cross section fine-strand with cable end sleeve	4.0
Connectable conductor cross section fine-strand without cable end sleeve	4.0
Connectable conductor cross section multi-wired	6.0
Material insulation body	Other
Connection position	Above
Rated current In	40.0
Explosion-tested version 'Ex e'	Нет
