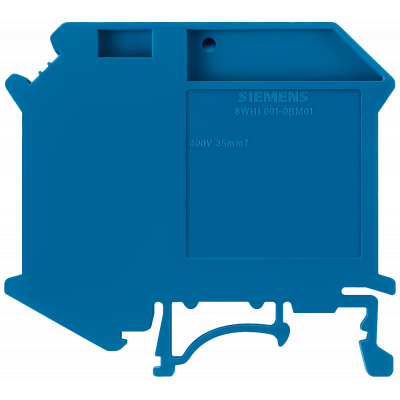

N conductor isolating terminal with screw connection, cross-section: 35 mm², width: 16 mm, color: .

N conductor isolating terminal with screw connection, cross-section: 35 mm², width: 16 mm, color: .. 8WH10010BM01
12.36€
Включая НДС
Артикул: 8WH1001-0BM01
КЛЕММА ИЗОЛИРОВАННАЯ, 35ММ2, СИНИЙ Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Mounting method Other
Colour Blue
Rated voltage 400
Number of clamp positions 2
Length 58.5
Operation temperature -
Inflammability class of insulation material acc. with UL94 V2
Width/grid dimension 16.0
Height at lowest possible mounting height 51.0
Connecting plate required Нет
Suitable for N-busbar 3x10 mm
Type of electric connection Screw connection
Connectable conductor cross section solid-core 0.75
Connectable conductor cross section fine-strand with cable end sleeve 0.75
Connectable conductor cross section fine-strand without cable end sleeve 1.5
Connectable conductor cross section multi-wired 0.75
Material insulation body Other
Rated current In 110.0
