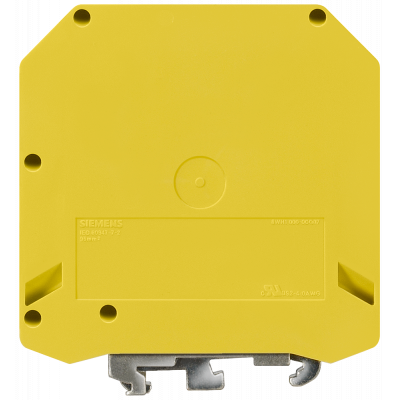

КЛЕММА PE ВИНТОВАЯ СЕЧЕНИЕ: 35 - 95 MM2, , AWG: 2 - 4/0, ШИРИНА: 25 MM, ЗЕЛЕНО-ЖЕЛТАЯ

КЛЕММА PE ВИНТОВАЯ СЕЧЕНИЕ: 35 - 95 MM2, , AWG: 2 - 4/0, ШИРИНА: 25 MM, ЗЕЛЕНО-ЖЕЛТАЯ Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Mounting method	DIN rail (top hat rail) 35 mm
Colour	Green/yellow
Length	83.0
Operation temperature	-25
Inflammability class of insulation material acc. with UL94	V0
Width/grid dimension	25.0
Height at lowest possible mounting height	96.5
Closing plate required	Нет
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
PEN function possible	Да
Number of levels	2
Number of clamp positions per level	1
Connectable conductor cross section solid-core	25.0
Connectable conductor cross section fine-strand with cable end sleeve	35.0
Connectable conductor cross section fine-strand without cable end sleeve	35.0
Connectable conductor cross section multi-wired	95.0
Material insulation body	Thermoplastic
Connection position	Sideways
