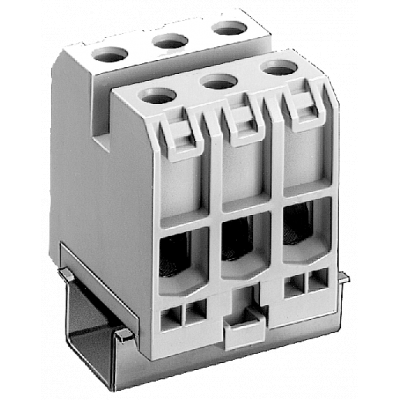

КЛЕММА ТЕРМОПЛАСТИКОВАЯ РАЗМЕР 35 48ММ 3-ПОЛЮСН. ВИНТОВОЕ ПОДСОЕДИНЕНИЕ БЕЖЕВАЯ
22.04€
Включая НДС
Артикул: 8WA1305
КЛЕММА ТЕРМОПЛАСТИКОВАЯ РАЗМЕР 35 48ММ 3-ПОЛЮСН. ВИНТОВОЕ ПОДСОЕДИНЕНИЕ БЕЖЕВАЯ Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Beige |
| Rated voltage | 800 |
| Length | 53.0 |
| Operation temperature | -25 |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Width/grid dimension | 16.0 |
| Height at lowest possible mounting height | 26.0 |
| Closing plate required | Нет |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Internally connected stages | Нет |
| Connectable conductor cross section solid-core | 4.0 |
| Connectable conductor cross section fine-strand with cable end sleeve | 6.0 |
| Connectable conductor cross section fine-strand without cable end sleeve | 6.0 |
| Connectable conductor cross section multi-wired | 10.0 |
| Material insulation body | Thermoplastic |
| Connection position | Sideways |
| Rated current In | 125.0 |
| Explosion-tested version 'Ex e' | Нет |
