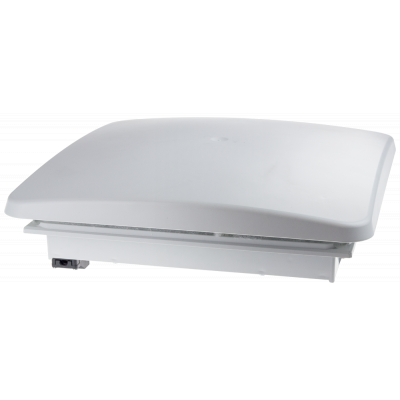

Roof-mounted fan, cutout: B: 223 mm, H: 223 mm, RAL 7035, IP54, air flow: 71 m3/h
241.50€
Включая НДС
Артикул: 8MR6402-5VL44
Roof fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP54, Airflow: 71 m3/h, Ue DC: 24 V SIVACON 8MF/8MR system air-conditioning - for air-conditioning in the cabinet. Meeting meet specific system air-conditioning requirements. SIVACON 8MR ensures the error-free operation of the electrical and electronic devices fitted in the cabinet even in adverse ambient conditions. It prevents condensation and frost damage, for example, and protects devices from the potential resulting malfunctions. The portfolio ranges from filter fans and cooling and heating units to thermostats. Alternatively, ventilated cabinets with which system air conditioning is ensured by natural convection can be used in equipment rooms. www.siemens.de/sivacon-8mf. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Mounting method | Snap mounting |
| Colour | Grey |
| Width | 287.0 |
| Height | 287.0 |
| Depth | 104.0 |
| RAL-number | 7035 |
| Voltage type | DC |
| Suitable for 19 inch rack mounting | Нет |
| Number of fans | 4 |
| EMC-version | Нет |
| Degree of protection (IP) | IP54 |
| With protective cover | - |
| With filter | Нет |
| Rated power | 8.8 |
| Roof ventilator | Нет |
| Built as slide-in ventilator | Нет |
| Volume flow, freeblowing | 70.92 |
| Air circulator | Нет |
| Wall build in | Нет |
| Noise emission | - |
| Operating voltage at AC 50 Hz | - |
| Operating voltage at AC 60 Hz | - |
| Operating voltage at DC | 24 |
| Degree of protection (NEMA) | - |
