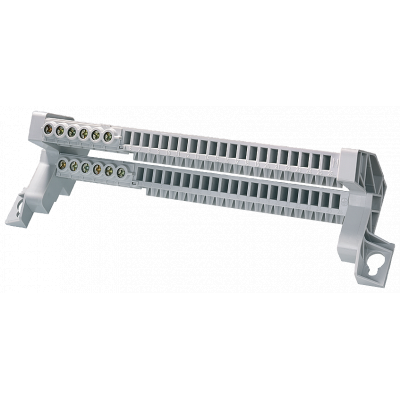

N/PE bar as a plug-in terminal with 6xscrew from 2.5 to 16 mm² and 21 x plug-in from .

N/PE-ШИНА С 6XВИНТАМИ ОТ 2.5 ДО 16MM2 И 21XЗАЖИМАМИ ОТ 1.5 ДО 4MM2 НА PE И С N-N ЗАЖИМ С 2 X ВИНТ ОТ 2.5 ДО 16MM2 И 10XЗАЖИМ ОТ 1.5 ДО 4MM2 The ALPHA distribution board is an overall system made up of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA - the system idea counts. The ALPHA distribution systems are tested in accordance with IEC 61439 and are based on a common platform structure with comprehensive designs up to 1250 A. Due to the platform structure and the modular layout, the device-specific assembly kits can be integrated in various distributor variants. This facilitates planning and installation. The equipping is done individually and project-specifically. The configuration software SIMARIS configuration provides support from planning to documentation of the power distribution boards and the ALPHA distribution boards. www.siemens.com/alpha Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Busbar distance	-
Mounting rail armament	None
Max. busbar thickness	-
Width of the adapter	-
Rail width	-
Type of electric connection	Other
Min. busbar thickness	-
Rated current In	-
