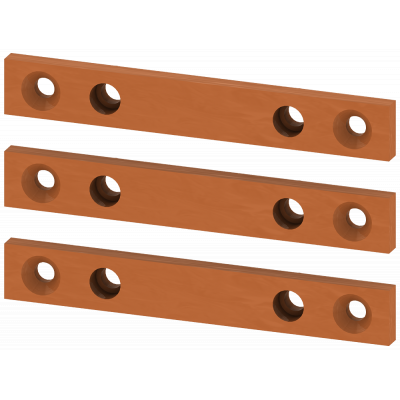

ALPHA Cu distribution busbar, 630 A with press nuts for NH00 in-line switch disconnectors .

ALPHA CU distribution busbars, 630A insert nuts, 3-pole for NH00 in-line switch disconnector W=250 mm 30 mm x 10 mm (3 bars) The ALPHA distribution board is an overall system made up of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA - the system idea counts. The ALPHA distribution systems are tested in accordance with IEC 61439 and are based on a common platform structure with comprehensive designs up to 1250 A. Due to the platform structure and the modular layout, the device-specific assembly kits can be integrated in various distributor variants. This facilitates planning and installation. The equipping is done individually and project-specifically. The configuration software SIMARIS configuration provides support from planning to documentation of the power distribution boards and the ALPHA distribution boards. www.siemens.com/alpha Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Width	30.0
Model	Other
Height	10.0
Flexible	Нет
Surface protection	Untreated
Length	210.0
Rated current In	630.0
