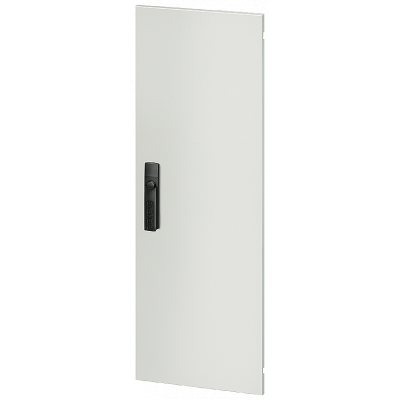

Door half, right, IP55, H: 1100 mm, W: 525 mm, RAL 9016, safety class 1 and 2

ALPHA 400DIN ЗАПАСНАЯ ПРАВАЯ ДВЕРЬ В=1100 MM, Ш=525 MM ДЛЯ ШКАФОВ ШИРИНОЙ 1000/1250ММ AP, IP43,55, КЛ2 The ALPHA distribution board is an overall system made up of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA - the system idea counts. The ALPHA distribution systems are tested in accordance with IEC 61439 and are based on a common platform structure with comprehensive designs up to 1250 A. Due to the platform structure and the modular layout, the device-specific assembly kits can be integrated in various distributor variants. This facilitates planning and installation. The equipping is done individually and project-specifically. The configuration software SIMARIS configuration provides support from planning to documentation of the power distribution boards and the ALPHA distribution boards. www.siemens.com/alpha Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Colour	White
Width	525.0
Model	Panel door
Height	1100.0
Depth	-
EMC-version	Нет
Material	Steel
Degree of protection (IP)	IP31
Surface finishing	Powder coating
Version as glazed door	Нет
Version as door for disconnecting switch interlocking	Нет
Degree of protection (NEMA)	Other
