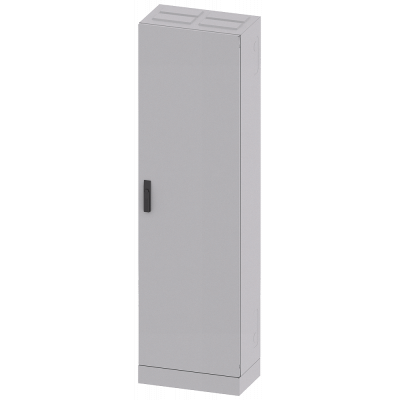

ALPHA 630, floor-mounted cabinet, IP55, degree of protection 1, H: 1950 mm, W: 550 mm, D: 320 ...
1 265.15€
Включая НДС
Артикул: 8GK1323-8KN24
ALPHA 630 НАПОЛЬННЫЙ РАСПРЕДЕЛИТ.ШКАФ,1950/550/320, IP55,SCI
Параметры
| Mounting method | Other |
| Protection class | I |
| Colour | Grey |
| Width | 550.0 |
| Height | 1950.0 |
| Depth | 320.0 |
| RAL-number | 7035 |
| With mounting plate | Нет |
| Surface protection | Powder coating |
| Built-in depth | 320.0 |
| Number of rows | - |
| Type of cover | Door |
| Number of conduit inlets | - |
| Extension possible | Да |
| Internal depth | 320.0 |
| Material housing | Steel |
| Circuit integrity | None |
| Width in number of modular spacings | - |
| Suitable for outdoor use | Нет |
| Impact strength | IK09 |
| Number of modules | - |
| Type of door | Single |
| Degree of protection (IP) | IP55 |
| Transparent cover/door | Нет |
| With lock | Да |
| Suitable for lightning protection | Да |
| Nominal current (In) | 630 |
| Plate thickness cabinet | - |
| Plate thickness door/cover | 1.0 |
| Cover model | None |
| Number of openings for flange plates | 8 |
| Degree of protection (NEMA) | Other |
