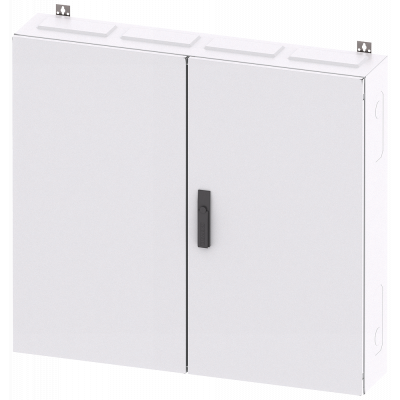

ALPHA 400, wall-mounted cabinet, IP55, degree of protection 2, H: 950 mm, W: 1050 mm, D: 210 ...
1 369.56€
Включая НДС
Артикул: 8GK1133-4KA42
ALPHA 400, wall-mounted cabinet, IP55, Protection class 2, H: 950 mm, W: 1050 mm, T: 210 mm, RAL 9016
Параметры
| Mounting method | Surface mounted (plaster) |
| Protection class | II |
| Colour | White |
| Width | 1050.0 |
| Height | 950.0 |
| Depth | 210.0 |
| RAL-number | 9016 |
| With mounting plate | Нет |
| Surface protection | Powder coating |
| Built-in depth | 210.0 |
| Number of rows | - |
| Type of cover | Door |
| Number of conduit inlets | - |
| Extension possible | Да |
| Internal depth | 210.0 |
| Material housing | Steel |
| Circuit integrity | None |
| Width in number of modular spacings | - |
| Suitable for outdoor use | Нет |
| Impact strength | IK09 |
| Number of modules | - |
| Type of door | Double |
| Degree of protection (IP) | IP55 |
| Transparent cover/door | Нет |
| With lock | Да |
| Suitable for lightning protection | Да |
| Nominal current (In) | 400 |
| Plate thickness cabinet | - |
| Plate thickness door/cover | 0.75 |
| Cover model | None |
| Number of openings for flange plates | 8 |
| Degree of protection (NEMA) | Other |
