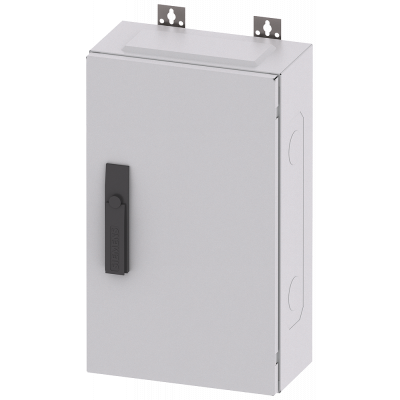

ALPHA 160, wall-mounted cabinet, IP43, degree of protection 2, H: 500 mm, W: 300 mm, D: 140 ...
235.94€
Включая НДС
Артикул: 8GK1032-1KK11
ALPHA 160 НАСТЕННЫЙ РАСПРЕДЕЛИТ. ШКАФ ПУСТОЙ RAL9016 IP43 1КЛАСС В=500 Ш=300 Г=140
Параметры
| Mounting method | Surface mounted (plaster) |
| Protection class | II |
| Colour | White |
| Width | 300.0 |
| Height | 500.0 |
| Depth | 140.0 |
| RAL-number | 9016 |
| With mounting plate | Нет |
| Surface protection | Powder coating |
| Built-in depth | 140.0 |
| Number of rows | - |
| Type of cover | Door |
| Number of conduit inlets | - |
| Extension possible | Нет |
| Internal depth | 140.0 |
| Material housing | Steel |
| Circuit integrity | None |
| Width in number of modular spacings | - |
| Suitable for outdoor use | Нет |
| Impact strength | IK08 |
| Number of modules | - |
| Type of door | Single |
| Degree of protection (IP) | IP43 |
| Transparent cover/door | Нет |
| With lock | Да |
| Suitable for lightning protection | Да |
| Nominal current (In) | 160 |
| Plate thickness cabinet | - |
| Plate thickness door/cover | 0.75 |
| Cover model | None |
| Number of openings for flange plates | 2 |
| Degree of protection (NEMA) | Other |
