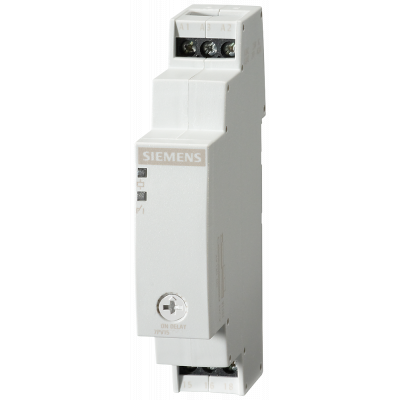

Timing relay, electronic, ON-delay, 1 CO, 1 time range, 5s-100s
24.22€
Включая НДС
Артикул: 7PV1513-1AQ30
ЭЛЕКТРОННОЕ РЕЛЕ ВРЕМЕНИ, ЗАДЕРЖКА ВКЛЮЧЕНИЯ, 1 П КОНТАКТ, ДИАПАЗОН УСТАВОК ВРЕМЕНИ 5 С. … 100 С., US 24/100 … 127 В АС ИЛИ 24 В DC, СВЕТОДИОДНАЯ ИНДИКАЦИЯ, ВИНТОВЫЕ КЛЕММЫ timing relay SIRIUS 7PV15, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Can be used in the control cabinet or distribution board.
Wide range of applications due to variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages.
The 7PV time relays are available as single or multifunctional time relays. Alternatively, 3RP time relays are available in an industrial design as single or multifunctional time relays with semi-conductor output or as electromechanical relays with or without positively driven operation, with various connection technologies in each case.
SIRIUS relays - one range for every application.
Параметры
| Nominal current | - |
| Width | 17.5 |
| Height | 90.0 |
| Depth | 66.7 |
| Suitable for front mounting | Нет |
| With plug-in socket | Нет |
| Remote operation possible | Нет |
| Suitable for remote control | Нет |
| Function flashing, starting with pause, fixed time | Нет |
| Function flashing, starting with pulse, fixed time | Нет |
| Clock function, starting with pause, variable | Нет |
| Clock function, starting with pulse, variable | Нет |
| With semiconductor output | Нет |
| Function delay-on energization | Да |
| Function floating contact on energization | Нет |
| Function star-delta | Нет |
| Time range | 5.0 |
| Function delay on de-energization | Нет |
| Function floating contact on de-energization | Нет |
| Function pulse shaping | Нет |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ | 100 |
| Rated control supply voltage Us at AC 60HZ | 100 |
| Rated control supply voltage Us at DC | 24 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
| Number of outputs, delayed, change-over contact | 1 |
| Pluggable on auxiliary contact block | Нет |
| Outputs, reversible delayed/undelayed | Нет |
| Suitable for DIN rail (top hat rail) mounting | Нет |
| Voltage type for actuating | AC/DC |
