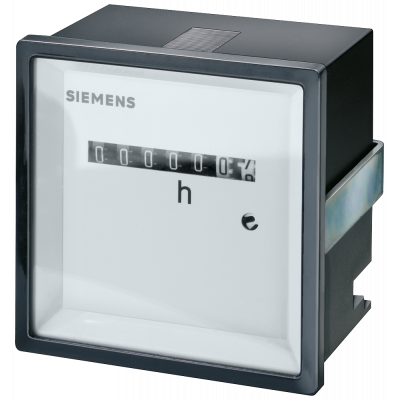

Time counter 72 x 72 mm 230 V AC 50 Hz without terminal cover.

СЧЕТЧИК ВРЕМЕНИ 72X72MM AC 230В 50 Hz БЕЗ КРЫШКИ КЛЕММ Time and pulse counters for front mounting for control cabinets, control systems and mechanical engineering. Time and pulse counters for control cabinets, control systems and mechanical engineering are used, e.g. in boilers, machine tools or compressors. The pulse counters count the starting frequencies. This supports planning for preventative maintenance. Whether for infrastructure or for industrial requirements, Siemens provides time and pulse counters for all applications and every application area. Key features of time and pulse counters from Siemens: 1. User-friendly and easy control cabinet installation and connection. 2. Additional accessories for control cabinet installation available. 3. Increased system availability with switch frequency counting. 4. Optimized technology for reliable time and pulse counting your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Mounting method	Front mounting
Width	67.5
Model	Analogue
Height	67.5
Voltage type	AC
Built-in depth	44.0
Type of drive	Quartz
Width in number of modular spacings	2
Input voltage	230
Mounting to max. wall thickness	-
Front plate width	72.0
Front plate height	72
Diameter panel opening	-
Operation indication	-
Reset function	None
Count area	99999.99
Degree of protection (IP)	IP00
Number of digits	7
Accuracy per day	-
Frequency input voltage	50
Degree of protection (NEMA)	Other
