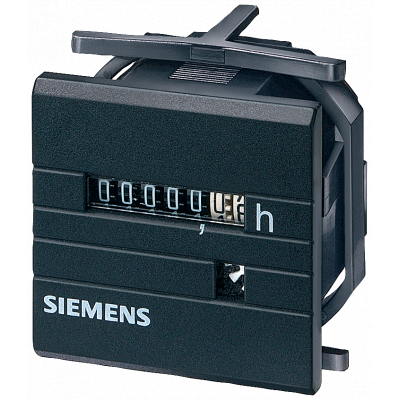

Time counter 48 x 48 mm 24 V AC 50 Hz without masking plate 55 x 55 mm.

СЧЕТЧИК ВРЕМЕНИ 48X48MM AC 24В 50 Hz БЕЗ КРЫШКИ 55X55 ММ Time and pulse counters for front mounting for control cabinets, control systems and mechanical engineering. Time and pulse counters for control cabinets, control systems and mechanical engineering are used, e.g. in boilers, machine tools or compressors. The pulse counters count the starting frequencies. This supports planning for preventative maintenance. Whether for infrastructure or for industrial requirements, Siemens provides time and pulse counters for all applications and every application area. Key features of time and pulse counters from Siemens: 1. User-friendly and easy control cabinet installation and connection. 2. Additional accessories for control cabinet installation available. 3. Increased system availability with switch frequency counting. 4. Optimized technology for reliable time and pulse counting your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Mounting method	Front mounting
Width	45.0
Model	Analogue
Height	45.0
Voltage type	AC
Built-in depth	34.0
Type of drive	Quartz
Width in number of modular spacings	-
Input voltage	24
Mounting to max. wall thickness	-
Front plate width	48.0
Front plate height	48
Diameter panel opening	50.2
Operation indication	-
Reset function	None
Count area	99999.99
Degree of protection (IP)	IP20
Number of digits	7
Accuracy per day	-
Frequency input voltage	50
Degree of protection (NEMA)	Other
