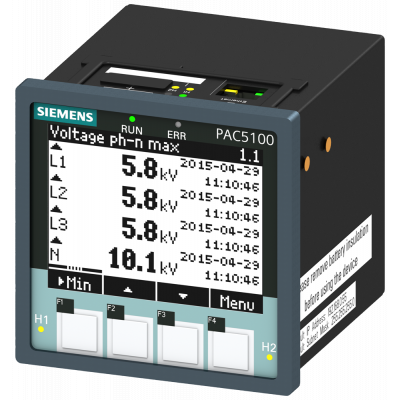

SENTRON, measuring device, 7KM PAC5100

SENTRON, measuring device, 7KM PAC5100, LCD, L-L: 690 V, L-N: 400 V, 10 A, 3-phase, Modbus TCP, apparent/active/ reactive energy / cos phi, harmonics: 2. - 40., THD, class 0.5 acc to IEC61557- 12 or cl. 0.5S acc. to IEC62053-22, wide-range pwr sup. unit AC/DC, screw terminals The 7KM PAC measuring devices are the ideal basis for recording energy values. The 7KM PAC measuring devices enable precise, reproducible and reliable measurement of energy values for infeed, outgoing feeders or individual loads. They not only provide comprehensive information about your electrical installations and power distribution, but also key measured values for assessing the system state and quality of the power supply. For further processing of the measured data, the devices are equipped with a wide range of communication options for easy integration in higher-level automation and energy management systems. With the 7KM PAC5100 measuring device, electrical measured variables such as voltage, current, power, energy, and harmonics up to the 40th Harmonic component can be recorded, represented and transferred. Key features of the Siemens 7KM PAC5100 measuring devices: 1. Flexibility with two device versions for mounting onto standard rail (without display) and front mounting. 2. Easy operation via the integrated Web server for parameterizing all devices and communication parameters, as well as online view and evaluation of measured values. 3. Standard-compliant acquisition of measured values in accordance with IEC 61000-4-30 Class S. 4. True RMS for voltage and current up to the 101st harmonic component / 2048 scan points per 10 run-throughs. 5. Efficient planning with comprehensive CAx data (ePLAN, 3D data). 6. Measurement up to the 40th harmonic of voltage and current (EN 50160). www.siemens.com/power-monitoring. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution boards as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Ampere meter	Да
Blind power meter	Да
Rotational speed meter	Нет
Frequency meter	Да
Pulse counter	Да
Voltmeter	Да
Effective power measurement device	Да
