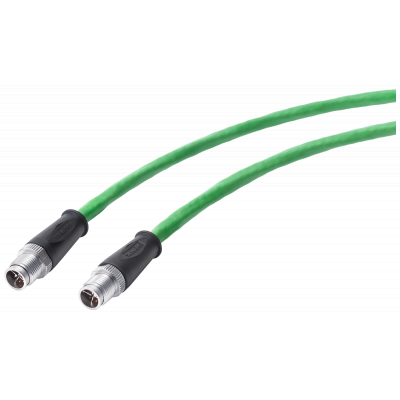

IE TP Cord M12/M12 4 x 2, 2 x M12 connectors (X-coded), Cat 7, IP67/67, 3 m
69.77€
Включая НДС
Артикул: 6XV1878-5HH30
IE TP Cord M12-180/M12-180, pre-assembled IE Flexible Cable with 2 M12 connectors (X-coded) Length 3.0 m Simple connection of terminal devices with an M12 interface and with IP65/67 degree of protection to the interference-proof Industrial Ethernet FastConnect cabling system (10/100/1000/10000 Mbps). Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Quick and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Simple cable laying due to small cable diameter.
Параметры
| Cable type | Other |
| Flame retardant | No |
| Pin assignment | 1:1 |
| Length | 3.0 |
| Colour outer sheath | Green |
| Category | 6A (TIA) |
| AWG-size | - |
| Anti-kink sleeve | - |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | M12 |
| Cable construction | Other |
| Colour anti-kink sleeve | - |
| Locking lever | Нет |
| Degree of protection (IP) | IP65 |
| Suitable for cable guide chain | Нет |
| Case connector connection 1 | - |
| Case connector connection 2 | - |
| Material connector of connector housing connection 1 | - |
| Material connector of connector housing connection 2 | - |
| NVP value | 68 |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
