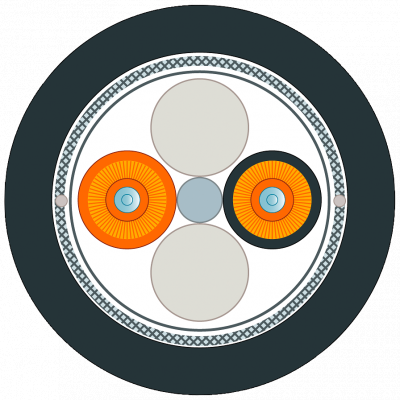

FO Ground Cable 50/125/1400 (OM 2), segmentable, MM, rodent protection, sold by the meter
7.12€
Включая НДС
Артикул: 6XV1873-2G
SIMATIC NET, ОПТИЧЕСКИЙ КАБЕЛЬ (50/125) ДЛЯ ПРОКЛАДКИ В ЗЕМЛЕ, БЕЗ СОЕДИНИТЕЛЕЙ, ПОСТАВКА ПО МЕТРАЖУ ОТРЕЗКАМИ ОТ 20 ДО 3000 М
Параметры
| UV resistant | - |
| Fibre type | Multi mode 50/125 |
| Flame retardant | No |
| Number of fibres | 2 |
| With strain relief | Да |
| Armouring | Да |
| Resistant to chemicals | - |
| Circuit integrity | - |
| Colour outer sheath | Black |
| Category | OM2 |
| Material outer sheath | Other |
| Type of tube | Loose tube |
| Number of fibres per tube | 1 |
| Cable metal free | Да |
| Underground installation | Нет |
| Blow in | Нет |
| Outer diameter approx. | 10.5 |
| With rodent protection | Да |
| Low smoke (acc. EN 61034-2) | Нет |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
| Longitudinal water blocking cable | Да |
| Radial water blocking cable | Да |
| Reaction-to-fire class according to EN 13501-6 | Fca |
| Smoke development class according to EN 13501-6 | - |
| Euro class flaming droplets/particles according to EN 13501-6 | - |
| Euro class acidity according to EN 13501-6 | - |
| Min. permitted bending radius, stationary application/permanent installation | 155.0 |
| Specification material outer sheath | Polyethylene (PE) |
