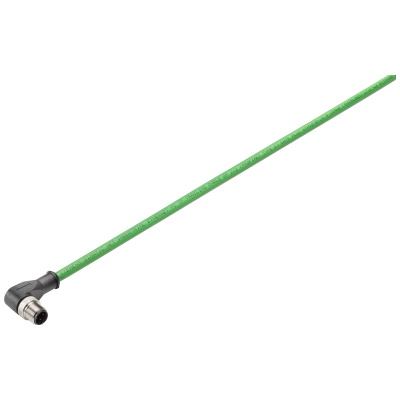

IE Cable M12-90/M12-90 2 x 2, 2x M12 connector (D-coded), Cat 5e, 1 m
30.60€
Включая НДС
Артикул: 6XV1870-8GH10
IE Connecting Cable M12-90/M12-90, pre-assembled IE FC Trailing Cable GP, with 2 M12 connectors (D-coded) length 1m For connecting Industrial Ethernet stations with degree of protection 65/67, with transfer rates of 10/100 Mbps. For use in trailing cables, e.g. in the case of continuously moving machine parts. Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Time-saving and fault-free connection of terminal stations by means of pre-assembled AWG22 connecting cables. Network immune to interference due to double-shielded cables and integrated grounding concept. Reliable shield contact and strain relief are integrated. Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173.
Параметры
| Cable type | SF/FTP |
| Flame retardant | No |
| Pin assignment | 1:1 |
| Length | 1.0 |
| Colour outer sheath | Green |
| Category | 5E |
| AWG-size | - |
| Anti-kink sleeve | - |
| Type of connector connection 1 | M12 |
| Type of connector connection 2 | M12 |
| Cable construction | Other |
| Colour anti-kink sleeve | - |
| Locking lever | Нет |
| Degree of protection (IP) | IP65 |
| Suitable for cable guide chain | Нет |
| Case connector connection 1 | - |
| Case connector connection 2 | - |
| Material connector of connector housing connection 1 | - |
| Material connector of connector housing connection 2 | - |
| NVP value | 66 |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
