IE TP XP Cord RJ45/RJ45 4 x 2, crossed, 2 x RJ45 connector 4x2, Cat 6a, 10 m
42.11€
Включая НДС
Артикул: 6XV1870-3RN10
SIMATIC NET INDUSTRIAL ETHERNET TP ХР КОРД RJ45/RJ45, КАТЕГОРИИ 6, ПЕРЕКРЕЩЕННЫЙ TP КАБЕЛЬ 4X2, ПРЕДСОБРАННЫЙ С 2-МЯ RJ45 РАЗЪЁМАМИ, L = 10 M Simple connection of terminal devices with an RJ45 interface to the interference-proof Industrial Ethernet FastConnect cabling system (10/100/1000 Mbps). Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Quick and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Simple cable laying due to small cable diameter. Color-coded RJ45 connectors for differentiation between crossed and uncrossed lines (crossed: RJ45 connector red on both sides, not crossed: RJ45 connector green on both sides).
Параметры

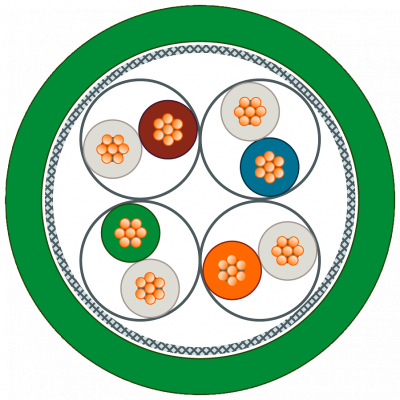

| Cable type | S/FTP |
| Flame retardant | No |
| Pin assignment | Crossed |
| Length | 10.0 |
| Colour outer sheath | Green |
| Category | 6A (TIA) |
| AWG-size | - |
| Anti-kink sleeve | - |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Cable construction | Other |
| Colour anti-kink sleeve | - |
| Locking lever | Нет |
| Degree of protection (IP) | IP20 |
| Suitable for cable guide chain | Нет |
| Case connector connection 1 | - |
| Case connector connection 2 | - |
| Material connector of connector housing connection 1 | Plastic |
| Material connector of connector housing connection 2 | - |
| NVP value | 80 |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
