IE FC TP Flexible Cable GP (Type B) 2 x 2, AWG 22/7, Cat 5e, sold by the meter, min. 20 m
2.32€
Включая НДС
Артикул: 6XV1870-2B

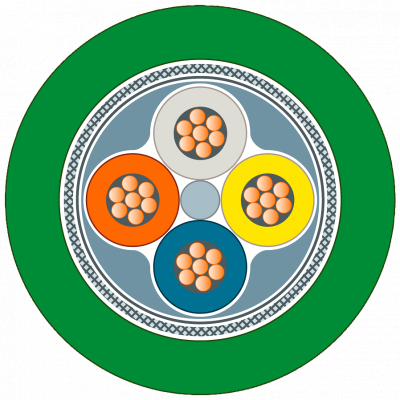

SIMATIC NET, ETHERNET FC ИНСТАЛЯЦИОННЫЙ ГИБКИЙ КАБЕЛЬ (PROFINET ТИП B) 4-x ЖИЛЬНЫЙ ЭКРАНИРОВАННЫЙ, КАТЕГОРИИ 5 ПРОДАЁТСЯ В МЕТРАХ, МАКС. ПОСТАВКА 1000 M, МИН. ЗАКАЗНАЯ ДЛИНА: 20 M Flexible cable for use in occasionally moving machine parts.Time is saved thanks to easy and quick on-site installation. Network immune to interference due to double-shielded cables and integrated grounding concept. Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines). Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173. Easy length measurement thanks to printed meter marking.
Параметры
| UV resistant | - |
| Nominal cross section conductor | - |
| Core insulation material | Other |
| Core identification | Colour |
| Flame retardant | No |
| Armouring | - |
| Circuit integrity | - |
| Stranding element | Quad |
| Colour outer sheath | Green |
| Category | 5E |
| Diameter conductor | 0.75 |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Conductor category | - |
| Permitted cable outer temperature during assembling/handling | -10 |
| Permitted cable outer temperature after assembling without vibration | -25 |
| Number of stranding elements | 2 |
| Protective sheath | No |
| AWG-size | - |
| Number of cores | 4 |
| Underground installation | Нет |
| Halogen free (acc. IEC 60754-2) | - |
| Insulation integrity in accordance with IEC 60331 | - |
| Low smoke (acc. IEC 61034-2) | - |
| Stranding | Bundle |
| Outer diameter approx. | 6.5 |
| Low smoke (acc. EN 61034-2) | Нет |
| NVP value | 66 |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
| Oil resistant (acc. IEC 60811-404) | - |
| Conductor surface | Bare |
| Longitudinal water blocking cable | - |
| Radial water blocking cable | - |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Smoke development class according to EN 13501-6 | - |
| Euro class flaming droplets/particles according to EN 13501-6 | - |
| Euro class acidity according to EN 13501-6 | - |
| Min. permitted bending radius, moving application with forced guidance | 52.0 |
| Min. permitted bending radius, moving application/free movement | 52.0 |
| Min. permitted bending radius, stationary application/permanent installation | 52.0 |
| Specification core insulation | - |
| Specification material outer sheath | Other |
