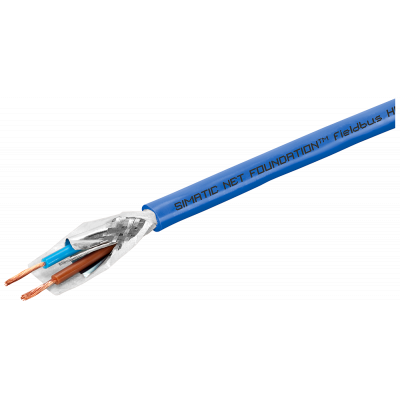

Foundation Fieldbus cable, haz. appl., blue jacket, 2-core shielded, sold by the meter
3.37€
Включая НДС
Артикул: 6XV1830-5GH10
Кабель Foundation Fieldbus (IEC61158-2), Цвет оболочки синий для Ех применений, 2-жильный экранированный, Мин объем заказа 20м. For use in fieldbus systems according to IEC 61158-2 (e.g. Foundation Fieldbus). Blue sheath color for hazardous applications.High interference immunity thanks to double shielding. Reduction in number of types and parts thanks to uniform connection system for FOUNDATION Fieldbus. Cable design with shield wire for easy shield contact at the end device. Easy length measurement thanks to printed meter marking.
Параметры
| UV resistant | - |
| Nominal cross section conductor | - |
| Core insulation material | Other |
| Core identification | Colour |
| Flame retardant | No |
| Armouring | - |
| Circuit integrity | - |
| Stranding element | Pairs |
| Colour outer sheath | Blue |
| Category | Other |
| Diameter conductor | 1.17 |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Conductor category | - |
| Permitted cable outer temperature during assembling/handling | -40 |
| Permitted cable outer temperature after assembling without vibration | -40 |
| Number of stranding elements | 1 |
| Protective sheath | No |
| AWG-size | - |
| Number of cores | 2 |
| Underground installation | - |
| Halogen free (acc. IEC 60754-2) | - |
| Insulation integrity in accordance with IEC 60331 | - |
| Low smoke (acc. IEC 61034-2) | - |
| Stranding | Bundle |
| Outer diameter approx. | 8.5 |
| Low smoke (acc. EN 61034-2) | Нет |
| NVP value | - |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
| Oil resistant (acc. IEC 60811-404) | - |
| Conductor surface | Bare |
| Longitudinal water blocking cable | - |
| Radial water blocking cable | - |
| Reaction-to-fire class according to EN 13501-6 | Fca |
| Smoke development class according to EN 13501-6 | - |
| Euro class flaming droplets/particles according to EN 13501-6 | - |
| Euro class acidity according to EN 13501-6 | - |
| Min. permitted bending radius, moving application with forced guidance | 68.0 |
| Min. permitted bending radius, moving application/free movement | 68.0 |
| Min. permitted bending radius, stationary application/permanent installation | 68.0 |
| Specification core insulation | - |
| Specification material outer sheath | Other |
