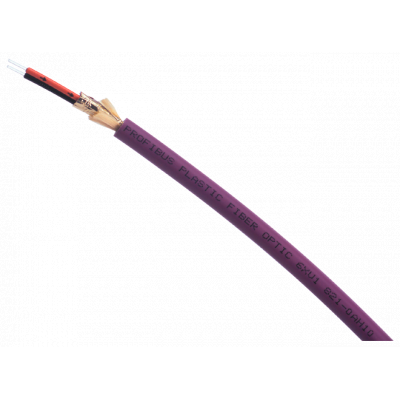

PB POF Standard Cable (980/1000), plastic, PVC outer sheath, 50 m ring
204.41€
Включая НДС
Артикул: 6XV1821-0AN50
SIMATIC NET, СТАНДАРТНЫЙ ПЛАСТИКОВЫЙ ВОЛОКОННО-ОПТИЧЕСКИЙ КАБЕЛЬ ДЛЯ PROFIBUS, БЕЗ СОЕДИНИТЕЛЕЙ, 50 М КОЛЬЦО
Параметры
| UV resistant | - |
| Fibre type | Multi mode 980/1000 |
| Flame retardant | In accordance with EN 60332-1-2 |
| Number of fibres | 2 |
| With strain relief | Да |
| Armouring | Нет |
| Resistant to chemicals | - |
| Circuit integrity | - |
| Colour outer sheath | Other |
| Category | - |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Type of tube | Other |
| Number of fibres per tube | 1 |
| Cable metal free | Да |
| Underground installation | Нет |
| Blow in | Нет |
| Outer diameter approx. | 7.8 |
| With rodent protection | Нет |
| Low smoke (acc. EN 61034-2) | Нет |
| Halogen free (acc. EN 60754-1/2) | - |
| Oil resistant (acc. EN 60811-404) | - |
| Longitudinal water blocking cable | Нет |
| Radial water blocking cable | Нет |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Smoke development class according to EN 13501-6 | - |
| Euro class flaming droplets/particles according to EN 13501-6 | - |
| Euro class acidity according to EN 13501-6 | - |
| Min. permitted bending radius, stationary application/permanent installation | 150.0 |
| Specification material outer sheath | Other |
