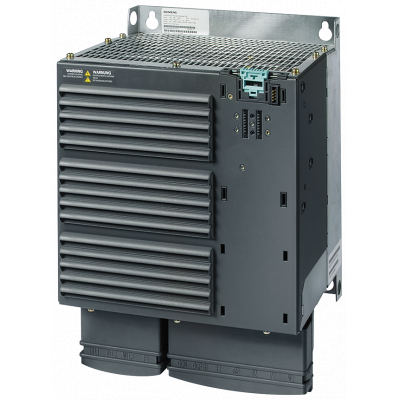

SINAMICS PM250, IP20 / UL open type, FSD, 380-480 V 3 AC, 30,00 kW
5 316.23€
Включая НДС
Артикул: 6SL3225-0BE32-2UA0
SINAMICS G120,СИЛОВОЙ МОДУЛЬ PM250 БЕЗ ФИЛЬТРА С ВОЗМОЖНОСТЬЮ РЕКУПЕРАЦИИ 3AC380-480В +10/-10% 47-63ГЦ ВЫХОДНАЯ МОЩНОСТЬ ВЫСОКОЙ ПЕРЕГРУЗКИ: 22КВТ ДЛЯ 200% 3S, 150% 57S,100% 240S ТЕМПЕРАТУРА ОКР. СРЕДЫ ОТ -10 ДО +50 ГРАД. C ВЫХОДНАЯ МОЩНОСТЬ НИЗКОЙ ПЕРЕГРУЗКИ: 30КВТ ДЛЯ 150% 3S, 110% 57S,100% 240S ТЕМПЕРАТУРА ОКР. СРЕДЫ ОТ-10 ДО +40 ГРАД. C 512 X 275 X 204 (ВXШXГ), FSD СТЕПЕНЬ ЗАЩИТЫ IP20 БЕЗ УПРАВЛЯЮЩЕГО МОДУЛЯ И BOP Power Module SINAMICS PM250 Power Module with degree of protection IP20 for the SINAMICS G120 modular frequency converter. The Power Modules are suitable for numerous applications in general machine manufacturing. Any braking energy that occurs is fed directly back into the supply system (four-quadrant applications - no braking chopper required). The PM250 Power Module contains a worldwide unique technology, the Efficient Infeed Technology. With the regenerative capability implemented in this way, energy is fed back into the supply system in generator mode (electronic braking) and not dissipated in a braking resistor, which saves space in the cabinet. The work involved in dimensioning the braking resistor and the associated wiring is eliminated and the heat arising in the cabinet is also reduced. The innovative circuitry also reduces line harmonics and the use of an optional line reactor at the line input is unnecessary. This saves space and work in planning and procurement. The permissible cable lengths between the converter and the motor are limited. To be able to achieve longer cable lengths, output reactors can be connected. The PM250 Power Module is also suitable for use in safety-related applications. If combined with a failsafe control unit, the result is a Safety Integrated Drive. The PM250 Power Modules are available in a three-phase voltage range between 380 V and 480 V and in the frame sizes FSC to FSF. Frame sizes FSD to FSF are available both without and with an integrated Class A line filter. For frame size FSC with an integrated Class A line filter, there is an additional base filter to achieve Class B. The PM250 Power Modules with an integrated Class A line filter are suitable for connection to TN systems those without an integrated line filter are suitable for connection to grounded TN/TT and ungrounded IT systems. Shield plates and shield connection kits are available for use when wiring the Control Units and Power Modules to ensure compliance with EMC guidelines. SINAMICS – simply my drive!
Параметры
| Width | 275.0 |
| Height | 419.0 |
| Depth | 204.0 |
| With control unit | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Supporting protocol for LON | - |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | - |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces serial TTY | - |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | - |
| Number of HW-interfaces other | - |
| With optical interface | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for KNX | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| Degree of protection (IP) | IP20 |
| With PC connection | - |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Да |
| Number of interfaces PROFINET | - |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Нет |
| Application in industrial area permitted | Нет |
| Application in domestic- and commercial area permitted | Нет |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 22.0 |
| Max. output at quadratic load at rated output voltage | 30.0 |
| Relative symmetric net voltage tolerance | -10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Max. output voltage | - |
| Nominal output current I2N | 60 |
| Supporting protocol for BACnet | - |
| Degree of protection (NEMA) | - |
