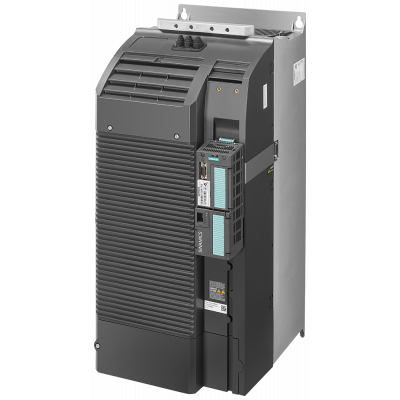

SINAMICS PM230, IP55 / UL type 12, FSC, B, 380-480 V 3 AC, 11,00 kW
2 443.80€
Включая НДС
Артикул: 6SL3223-0DE31-1BG1
SINAMICS G120P Силовой модуль PM230 со встроенным фильтром класса B Степень защиты IP55 / UL тип 12 380-480 3 AC + 10 / -10% 47-63 Низкая перегрузка Гц Мощность: 11 кВт при 150% 3s, 110% 57s, 100% 240 с Температура окружающей среды от -10 до + 40 ° C (LO Power Module SINAMICS Power Module PM230 degree of protection IP55, the specialist for building management systems for the SINAMICS G120P frequency converter. The SINAMICS power unit together with the suitable CU230P-2 control unit and an IOP/IOP-2 (Intelligent Operator Panel) or Basic Operator Panel (BOP-2) operator panel or an optional dummy cover make up the functional SINAMICS G120P frequency converter. Due to the high degree of protection, use in tough environments, such as operation at ambient temperatures of up to 60 degrees, is possible. The PM230 degree of protection IP55 produces only slight line harmonic distortions without additional measures and apparent power losses and ensures faults are acknowledged automatically after power failure. In addition to the energy-related advantages, the environmental stress is also reduced. The PM230 Power Module, with degree of protection IP55, is available for powers ranging from 0.37 kW to 90 kW for panel mounting outside the control cabinet. Frame sizes FSA up to FSF of the PM230 Power Module, in degree of protection IP 55, are available with an integrated Class A line filter for installations according to Category C2 – and with an integrated Class B line filter according to Category C1 to EN 61800-3. As standard, the following accessories are included in the scope of delivery: Shield plates and shield connecting kits for EMC-compliant connection of power and control cables for frame sizes FSA up to FSC, plug connectors for the line supply and motor. SINAMICS - simply my drive!
Параметры
| Width | 230.0 |
| Height | 620.0 |
| Depth | 249.0 |
| With control unit | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Supporting protocol for LON | - |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | - |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces serial TTY | - |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | - |
| Number of HW-interfaces other | - |
| With optical interface | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for KNX | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| Degree of protection (IP) | IP55 |
| With PC connection | - |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Нет |
| Number of interfaces PROFINET | - |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Нет |
| Application in industrial area permitted | Да |
| Application in domestic- and commercial area permitted | Да |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 7.5 |
| Max. output at quadratic load at rated output voltage | 11.0 |
| Relative symmetric net voltage tolerance | -10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Max. output voltage | - |
| Nominal output current I2N | 26 |
| Supporting protocol for BACnet | - |
| Degree of protection (NEMA) | - |
