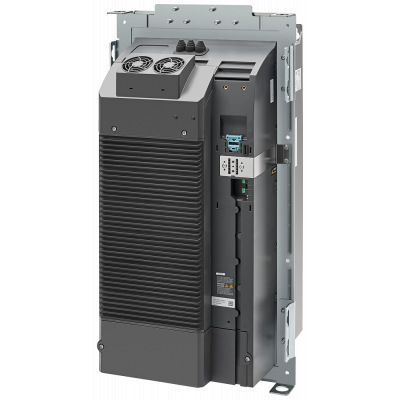

SINAMICS PM240-2, IP20 / UL open type, FSF, A, 380-480 V 3 AC, 132,00 kW
15 174.11€
Включая НДС
Артикул: 6SL3211-1PE32-5AL0
SINAMICS G120 модуль питания PM240-2 протолкнуть, со встроенным CL. Фильтровальный со встроенными тормозным прерывателем 3AC380-480V + 10 / -20% 47-63 Гц OUTPUT высокой перегрузки: 110 200% 3S, 150% 57S, 100% 240S температура окружающей среды от -20 до + Power Module SINAMICS PM240-2 Power Module – the ideal Power Module for standard applications in machinery construction based on the modular SINAMICS G120 inverter. As part of the modular SINAMICS G120 inverter (comprising power unit, control unit, operator panel), the PM240-2 Power Modules (degree of protection IP20) are equipped with a braking chopper (four-quadrant applications) – and are suitable for addressing many applications in general machinery construction. SINAMICS - simply my drive!
Параметры
| Width | 384.0 |
| Height | 754.0 |
| Depth | 358.0 |
| With control unit | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Supporting protocol for LON | - |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | - |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces serial TTY | - |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | - |
| Number of HW-interfaces other | - |
| With optical interface | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for KNX | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| Degree of protection (IP) | IP20 |
| With PC connection | - |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Нет |
| Number of interfaces PROFINET | - |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Да |
| Application in industrial area permitted | Да |
| Application in domestic- and commercial area permitted | Нет |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 110.0 |
| Max. output at quadratic load at rated output voltage | 132.0 |
| Relative symmetric net voltage tolerance | -10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Max. output voltage | - |
| Nominal output current I2N | 250 |
| Supporting protocol for BACnet | - |
| Degree of protection (NEMA) | - |
