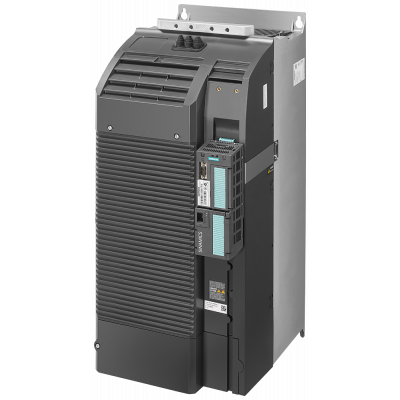

SINAMICS PM240P-2, IP20 / UL open type, FSF, A, 380-480 V 3 AC, 90,00 kW
10 147.58€
Включая НДС
Артикул: 6SL3210-1RE31-8AL0
SINAMICS G120 Силовой модуль PM240P-2 со встроенным фильтром ЭМС Класса А. Питание 3AC380-480В +10/-20% 47-63Гц, высокая перегрузка: 75кВт (150% 60с, далее 100% 240с) температура окружающей среды: от -20 до +50 градусов C (HO) низкая перегрузка: 90кВт (135% 3с, 110% 57с, 100% 240с) температура окружающей среды: от -20 до +40 градусов C (LO). Габаритные размеры: 708 x 305 x 357 (ВхШхГ), типоразмер: FSE. Степень защиты IP20. Без Управляющего модуля и без панели оператора. Совместим с Управляющими модулями, которые имеют версию прошивки не ниже V4.7 SP6 HF1 Power Module SINAMICS PM240P-2 Power Module degree of protection IP20 for industrial applications in the process industries for the SINAMICS G120P frequency converter. The Power Modules are available for use in the water/waste water sector and for industrial applications. The new PM240P-2 Power Modules are based on a new hardware platform, which permits a higher power density. The PM240P-2 Power Modules are also suitable for use in safety-related applications. In conjunction with an external tripping unit (e.g. SIRIUS 3SK1), the drive becomes a Safety Integrated Drive with the safety function Safe Torque Off with a Safety Integrity Level of up to SIL 3. A further advantage of the Power Module is its ruggedness because it can also be used in severe ambient conditions, such as temperatures of -10° to 60° and in corrosive environments (resistance to pollution). Enhanced energy efficiency is also achieved with a higher output voltage (98 percent) due to an integrated DC link reactor. This Power Module does not contain an integrated braking chopper and the permissible cable lengths between the converter and the motor are limited. To permit longer cable lengths, output reactors can be connected. The PM240P-2 Power Modules in frame sizes FSD to FSF are available both with and without an integrated Class A line filter in a compact design in a three-phase voltage range of 380 V to 480 V and in a three-phase voltage range of 500 V to 690 V. The PM240P-2 Power Modules with an integrated Class A line filter are suitable for connection to TN systems. The Power Modules without an integrated line filter are suitable for connection to grounded TN/TT and ungrounded IT systems. Shield plates and shield connection kits are available for use when wiring the Control Units and Power Modules to ensure compliance with EMC guidelines. SINAMICS - simply my drive!
Параметры
| Width | 305.0 |
| Height | 708.0 |
| Depth | 357.0 |
| With control unit | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Supporting protocol for LON | - |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | - |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces serial TTY | - |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | - |
| Number of HW-interfaces other | - |
| With optical interface | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for KNX | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| Degree of protection (IP) | IP20 |
| With PC connection | - |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Нет |
| Number of interfaces PROFINET | - |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Нет |
| Application in industrial area permitted | Да |
| Application in domestic- and commercial area permitted | Нет |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 75.0 |
| Max. output at quadratic load at rated output voltage | 90.0 |
| Relative symmetric net voltage tolerance | -10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Max. output voltage | - |
| Nominal output current I2N | 178 |
| Supporting protocol for BACnet | - |
| Degree of protection (NEMA) | - |
