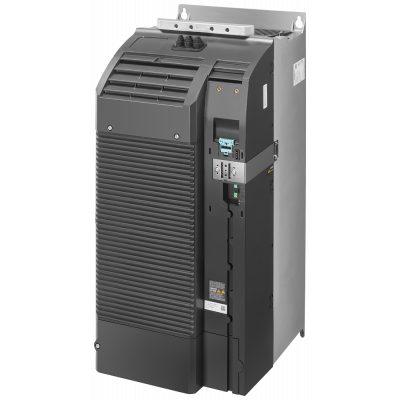

SINAMICS PM240-2, IP20 / UL open type, FSF, 380-480 V 3 AC, 110,00 kW
11 355.78€
Включая НДС
Артикул: 6SL3210-1PE32-1UL0
SINAMICS G120 модуль питания PM240-2 без фильтра со встроенной тормозной прерыватель 3AC380-480V + 10 / -20% 47-63 Гц OUTPUT высокой перегрузкой: 90KW 200% 3S, 150% 57S, 100% 240S температура окружающей среды от -20 до + 50 & deg С (НО) ВЫХОД НИЗКИЙ ПЕРЕ Power Module SINAMICS Power Module PM240-2 is the ideal Power Module for standard applications and machinery construction for modular SINAMICS G120 converters. As part of the modular SINAMICS G120 converter (comprising power unit, control unit, operator panel), PM240-2 Power Modules (degree of protection IP20) have a braking chopper (four-quadrant applications) and are ideally suited to address a wide range of applications in general machinery construction.
Depending on the scope of the relevant application and safety requirement (for example, STO, SS1, SBC, SLS, SDI, SSM), the PM240-2 Power Module can be flexibly combined with various Control Units. Together with the CU230-2, CU240x-2, and CU250S-2 Control Units, this makes up the functional SINAMICS G120 frequency converter. The PM240-2 in degree of protection IP20 is a built-in unit for installation in control cabinets. It is available in a power range of 0.55 kW to 250 kW, as well as in three voltage versions 200 V, 400 V, and 690 V. The Power Modules are available in an unfiltered version or with an integrated line filter class A, and in seven frame sizes from FSA to FSG. The Power Module is also available as a push-through variant for the optimum dissipation of heat loss outside the control cabinet. These sizes also offer Safety Integrated. Cable lengths of up to 450 m (frame size FSF/FSG) are possible thanks to the rugged design. Shield plates and shield connection kits are available for use when wiring the device to ensure compliance with EMC guidelines. SINAMICS - simply my drive!
Параметры
| Width | 305.0 |
| Height | 708.0 |
| Depth | 357.0 |
| With control unit | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Supporting protocol for LON | - |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | - |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces serial TTY | - |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | - |
| Number of HW-interfaces other | - |
| With optical interface | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for KNX | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| Degree of protection (IP) | IP20 |
| With PC connection | - |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Нет |
| Number of interfaces PROFINET | - |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Да |
| Application in industrial area permitted | Нет |
| Application in domestic- and commercial area permitted | Нет |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 90.0 |
| Max. output at quadratic load at rated output voltage | 110.0 |
| Relative symmetric net voltage tolerance | -10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Max. output voltage | - |
| Nominal output current I2N | 205 |
| Supporting protocol for BACnet | - |
| Degree of protection (NEMA) | - |
