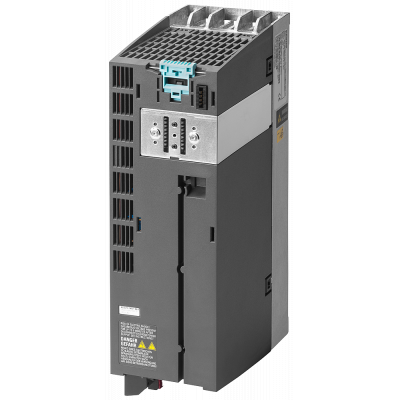

SINAMICS PM230, IP20 / UL open type, FSB, 380-480 V 3 AC, 7,50 kW
1 010.35€
Включая НДС
Артикул: 6SL3210-1NE21-8UG1
SINAMICS G120 Силовой модуль PM230 нефильтрованное Степень защиты IP20 380-480 3 AC + 10 / -10% 47-63 Гц Мощность перегрузки низкая: 7,5 кВт при 150% 3s, 110% 57s, 100% 240 с Температура окружающей среды от 0 до + 40 ° C (LO) 292x 100x 165 (ВxШxГ), ФСБ б Power Module SINAMICS PM230 Power Module with degree of protection IP20 the specialist for building management systems for the SINAMICS G120P frequency converter. The SINAMICS power unit together with the suitable CU230P-2 control unit and an IOP/IOP-2 (Intelligent Operator Panel) or BOP-2 (Basic Operator Panel) operator panel makes up the functional SINAMICS G120P frequency converter. The PM230 (degree of protection IP20) is a built-in device for installation in electrical cabinets and only generates low line harmonics and apparent power losses. In addition to the energy-related advantages, there is also less environmental stress. The PM230 Power Module (degree of protection IP 20) supplies motors in a power range extending from 0.37 kW up to 75 kW. Frame sizes FSA up to FSF of the PM230 Power Module, in degree of protection IP 20 as well as push-through versions are available with an integrated Class A line filter for installations according to Category C2 according to EN 61800-3 or without integrated line filter. As standard, the following accessories are included in the scope of delivery: Shield plates and shield connecting kits for EMC-compliant connection of power and control cables for frame sizes FSA up to FSC, plug connectors for the line supply and motor. SINAMICS – the integrated drive family for every application area
Параметры
| Width | 100.0 |
| Height | 292.0 |
| Depth | 165.0 |
| With control unit | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Supporting protocol for LON | - |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | - |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | - |
| Number of HW-interfaces serial TTY | - |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | - |
| Number of HW-interfaces other | - |
| With optical interface | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for KNX | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| Degree of protection (IP) | IP20 |
| With PC connection | - |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Нет |
| Number of interfaces PROFINET | - |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Нет |
| Application in industrial area permitted | Нет |
| Application in domestic- and commercial area permitted | Нет |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 5.5 |
| Max. output at quadratic load at rated output voltage | 7.5 |
| Relative symmetric net voltage tolerance | -10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Max. output voltage | - |
| Nominal output current I2N | 18 |
| Supporting protocol for BACnet | - |
| Degree of protection (NEMA) | - |
