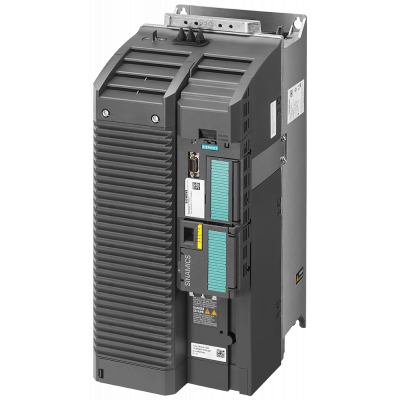

SINAMICS G120C, PROFINET, EtherNet/IP, IP20 / UL open type, FSD,A, 380-480 V, 3AC, 22,00 kW
3 619.85€
Включая НДС
Артикул: 6SL3210-1KE24-4AF1
SINAMICS G120C Номинальная мощность 22.0KW С 150% ПЕРЕГРУЗКА в течение 3 сек 3AC380-480V + 10 / -20% 47-63 Гц Встроенный фильтр КЛАСС AI / O-ИНТЕРФЕЙС: 6DI, 2DO, 1ai, 1aO ЗАЩИТНОЕ ОТКЛЮЧЕНИЕ МОМЕНТА ИНТЕГРИРОВАННЫМ FIELDBUS: PROFINET-PN ЗАЩИТА: IP20 / UL Frequency converter SINAMICS G120C the compact and versatile frequency converter with optimum functionality for requirements of various applications, such as conveyor belts, mixers, pumps, fans, and compressors. With the certified safety function Safe Torque Off (STO), STO via terminal/ with PROFIsafe, already integrated, no further external components are required. Operation/commissioning is performed quickly and simply with the PC via USB or via a Basic Operator Panel or Intelligent Operator Panel. Networking of the drives is possible via standard fieldbus systems (PROFINET, PROFIBUS) and a card slot for cloning parameter sets for intuitive series commissioning is provided. To boost energy efficiency, the converter is equipped with a precise energy-optimized vector control SLVC and features automatic flux reduction. The SINAMICS G120C covers the three-phase voltage range between 380 V to 480 V and is available in seven frame sizes in a power range of 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be individually adapted to the user's requirements with various options, such as connecting cables, line filters, braking resistors, line reactors, and further accessories. The variable-speed devices are an integral part of Totally Integrated Automation (TIA) and work optimally together with SIMATIC controllers, for example. SINAMICS - simply my drive!
Параметры
| Width | 200.0 |
| Height | 472.0 |
| Depth | 237.0 |
| With control unit | - |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of analogue inputs | 1 |
| Number of analogue outputs | 1 |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 6 |
| With optical interface | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Degree of protection (IP) | IP20 |
| With PC connection | Да |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Mains voltage | 380 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Нет |
| Number of interfaces PROFINET | 2 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | Да |
| Application in industrial area permitted | Да |
| Application in domestic- and commercial area permitted | Да |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 18.5 |
| Max. output at quadratic load at rated output voltage | 22.0 |
| Relative symmetric net voltage tolerance | -20 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Да |
| Supporting protocol for SafetyBUS p | Нет |
| Max. output voltage | 480 |
| Nominal output current I2N | 43 |
| Supporting protocol for BACnet | Нет |
| Degree of protection (NEMA) | - |
