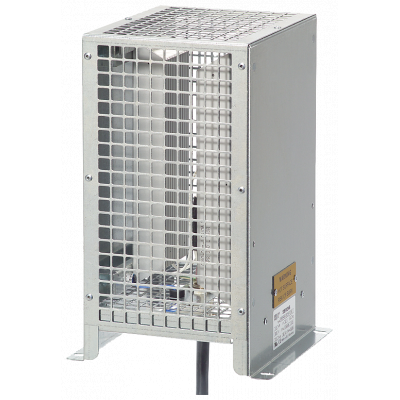

Braking resistor 27,00 Ohm, 24,00 kW
565.68€
Включая НДС
Артикул: 6SE6400-4BD21-2DA0
MICROMASTER 4 ТОРМОЗНОЙ РЕЗИСТОР 380-480 В 27R 24000ВТ PK 1200ВТ КОНТ. 515 X 270 X 175 ММ В X Ш X Г IP20 Braking resistor SINAMICS braking resistor for modular SINAMICS G120 inverters as well as for MICROMASTER 4. The braking resistors are designed and dimensioned for use with the MICROMASTER 440 inverter series, frame sizes A to F with integrated braking chopper – and allow loads with high moments of inertia to be quickly braked.
Excess energy is fed back to the inverter while the load and motor are being braked. This causes the DC link voltage to increase. The inverter transfers the excess energy to an externally mounted braking resistor. The braking resistor can be used for the voltage range 200 V to 480 V. SINAMICS – simply my drive!
Параметры
| Type of accessory | Breaking resistance |
