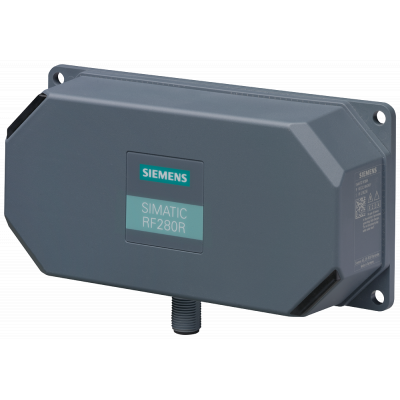

SIMATIC RF300 Reader RF280R (ASCII/Scanmode) RS232 interface IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna
709.92€
Включая НДС
Артикул: 6GT2821-8AC40
SIMATIC RF300 Reader RF280R (ASCII/Scanmode) RS232 interface IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna Compact reader with integrated antenna and a large range. - RS232 interface with ASCII protocol for connection to controllers or PC-based systems. - High degree of protection and heavy-duty design facilitate problem-free use even in harsh industrial environments. - Simplified engineering, commissioning, diagnostics and maintenance through seamless integration into TIA.
Параметры
| Width | 80.0 |
| Height | 41.0 |
| Depth | 160.0 |
| Frequency | 13.56 |
| Diameter | - |
| Radio protocol | ISO 18000-3 |
| Max. transmission range | 200.0 |
| Material housing | Plastic |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Type of voltage (input voltage) | DC |
| Type of electric connection | Screw connection |
| Connection for external antenna | Нет |
| Degree of protection (IP) | IP67 |
| Max. transmission rate, reading | 26.5 |
| Max. transmission rate, writing | 26.5 |
