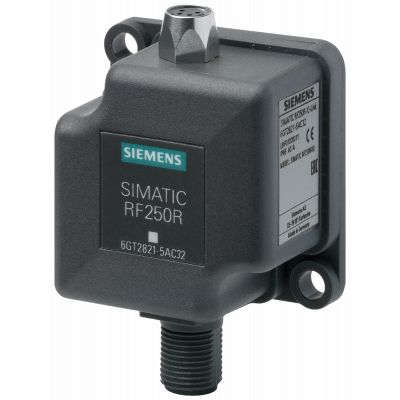

SIMATIC RF200 Reader RF250R IO-Link IO-Link interface without antenna IP65, -25 to +70 °C, 50x 50x 30 mm, can be operated with: ANT 1, 3, 3 NO, 8, 12,
452.88€
Включая НДС
Артикул: 6GT2821-5AC32
SIMATIC RF200 Reader RF250R IO-Link IO-Link interface without antenna IP65, -25 to +70 °C, 50x 50x 30 mm, can be operated with: ANT 1, 3, 3 NO, 8, 12, 18, 30 8 byte IO 38.4 Kbps Very small compact reader for connecting an external antenna. - Standardized IO-Link interface for connecting to IO-Link master modules. - High degree of protection and heavy-duty design facilitate problem-free use even in harsh industrial environments. - Simplified engineering, commissioning, diagnostics and maintenance through seamless integration into TIA. - Simple and end-to-end connection via communication modules.
Параметры
| Width | 50.0 |
| Height | 30.0 |
| Depth | 50.0 |
| Frequency | 13.56 |
| Diameter | - |
| Radio protocol | ISO 18000-3 |
| Max. transmission range | 60.0 |
| Material housing | Plastic |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Type of voltage (input voltage) | DC |
| Type of electric connection | Other |
| Connection for external antenna | Да |
| Degree of protection (IP) | IP65 |
| Max. transmission rate, reading | 26.5 |
| Max. transmission rate, writing | 26.5 |
