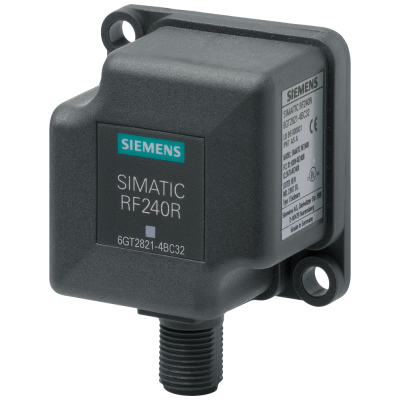

SIMATIC RF200 reader RF240R IO-Link interface V1.1 IP67, -25 to +70 °C 50x 50x 30 mm with integrated antenna 32 Byte IO 230 Kbps
452.88€
Включая НДС
Артикул: 6GT2821-4BC32
SIMATIC RF200 reader RF240R IO-Link interface V1.1 IP67, -25 to +70 °C 50x 50x 30 mm with integrated antenna 32 Byte IO 230 Kbps Very small compact reader with integrated antenna and a large detection range. - Standardized IO-Link interface for connecting to IO-Link master modules. - High degree of protection and heavy-duty design facilitate problem-free use even in harsh industrial environments. - Simplified engineering, commissioning, diagnostics and maintenance through seamless integration into TIA. - Simple and end-to-end connection via communication modules
Параметры
| Width | 50.0 |
| Height | 30.0 |
| Depth | 50.0 |
| Frequency | 13.56 |
| Diameter | - |
| Radio protocol | ISO 18000-3 |
| Max. transmission range | 65.0 |
| Material housing | Plastic |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Type of voltage (input voltage) | DC |
| Type of electric connection | Screw connection |
| Connection for external antenna | Нет |
| Degree of protection (IP) | IP67 |
| Max. transmission rate, reading | 26.5 |
| Max. transmission rate, writing | 26.5 |
