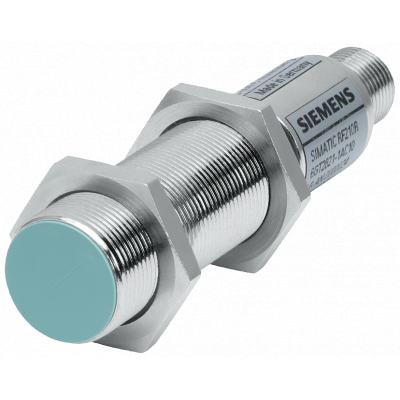

Считыватель RF210R без антенны, IO-LINK-интерфейс, IP 67, -25 до +70 C, M18 X83мм, со встроенной антенной.
422.28€
Включая НДС
Артикул: 6GT2821-1AC32
Считыватель RF210R без антенны, IO-LINK-интерфейс, IP 67, -25 до +70 C, M18 X83мм, со встроенной антенной. Small compact reader in M18 housing for special installation situations. Robust through welded housing with top design for enhanced usability. Standardized IO-Link interface for connecting to IO-Link master modules. Simplified engineering, commissioning, diagnostics and maintenance through seamless integration into TIA. System-wide bus connection to the control level via PROFIBUS and PROFINET via communication modules. Diagnostics through integrated error message. Open ISO 15693 standard, standardized communication interfaces. Connection possibilities to various bus systems from different manufacturers via communication modules. Extremely easy implementation without any programming work via IO link.
Параметры
| Width | - |
| Height | 83.0 |
| Depth | - |
| Frequency | 13.56 |
| Diameter | 18.0 |
| Radio protocol | ISO 18000-3 |
| Max. transmission range | 20.0 |
| Material housing | Brass |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Type of voltage (input voltage) | DC |
| Type of electric connection | Screw connection |
| Connection for external antenna | Нет |
| Degree of protection (IP) | IP67 |
| Max. transmission rate, reading | 26.5 |
| Max. transmission rate, writing | 26.5 |
