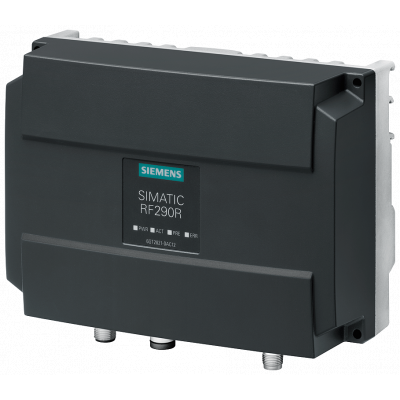

Считыватель RF290R без антенны, RS 232/RS 422 (совместим с :ANT D2, ANT D5, ANT D6, ANT D10)
2 668.32€
Включая НДС
Артикул: 6GT2821-0AC12
Считыватель RF290R без антенны, RS 232/RS 422 (совместим с :ANT D2, ANT D5, ANT D6, ANT D10) High-performance reader for connecting external antennas. Combined RS422/RS232 interface for connection to the RFID communication modules / for integration into PC-based control systems. An antenna switch or a multiplexer enables several individual antennas or portal solutions to be implemented with only one reader.
Параметры
| Width | 200.0 |
| Height | 80.0 |
| Depth | 140.0 |
| Frequency | 13.56 |
| Diameter | - |
| Radio protocol | ISO 18000-3 |
| Max. transmission range | 650.0 |
| Material housing | Aluminium |
| Number of digital inputs | 1 |
| Number of digital outputs | 1 |
| Type of voltage (input voltage) | DC |
| Type of electric connection | Screw connection |
| Connection for external antenna | Да |
| Degree of protection (IP) | IP65 |
| Max. transmission rate, reading | 26.5 |
| Max. transmission rate, writing | 26.5 |
