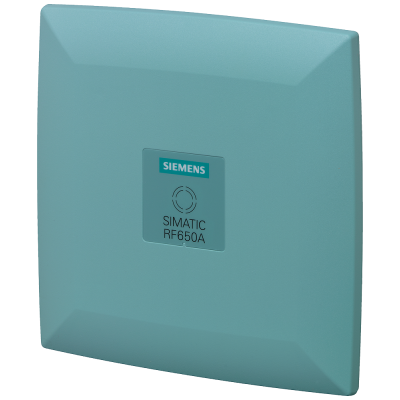

Antenna RF650A circular, RF600, 865-928 MHz, IP65
214.20€
Включая НДС
Артикул: 6GT2812-0GB08
SIMATIC RF600 antenna RF650A circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH) IP65, -25 to +75 °C Optimum forward and reverse ratio minimizes reflections and the resulting unwanted side effects. This facilitates system design and commissioning. The antenna can detect transponders in a wide variety of orientations. Due to its broadband design, the antenna is suitable for worldwide use. Four drill holes (VESA 100 mounting system) allow flexible mounting. High degree of protection (IP65) and extended temperature range facilitate use in harsh industrial environments and in outdoor spaces.
Параметры
| Model | - |
| Receiving range | UHF |
| Max. gain | 4 |
| Length | 0.198 |
| Channel range | - |
| Number of frequency bands | - |
| Frequency band 1 | - |
| Frequency band 2 | - |
| Frequency band 3 | - |
| Frequency band 4 | - |
| Omni directional | Нет |
