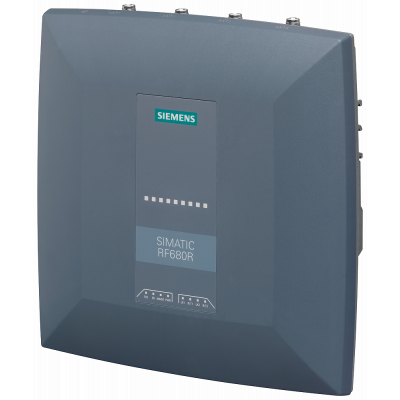

SIMATIC RF600 READER RF680R ETSI (865 ... 868 MHZ), INTERFACES: ETHERNET M12 PROFINET M12 4 ANTENNAS, 4 DIG. INPUTS/ 4 DIG. OUTPUTS, 24 V DC, IP65, -2

SIMATIC RF600 READER RF680R ETSI (865 ... 868 MHZ), INTERFACES: ETHERNET M12 PROFINET M12 4 ANTENNAS, 4 DIG. INPUTS/ 4 DIG. OUTPUTS, 24 V DC, IP65, -25 UP TO +55 DGR/C, W/O ACCESSORIES AND ANTENNAS Suitable for use in harsh industrial and outdoor environments thanks to the high degree of protection (IP65). UHF for industry algorithms facilitates optimum reading results in areas with difficult radio connectivity. Commissioning and diagnostics tools are already integrated into the reader. Web interface (HTML5) for convenient commissioning, parameter assignment and diagnostics. Integrated PROFINET, EtherNet/IP and Ethernet (TCP/IP, OPC UA) interfaces facilitate simple integration. Multi-functional reader with a long range (up to 200 mm). The reader is one of the world's first UHF readers with OPC UA functionality (OPC UA Server) with protection against unauthorized data access by means of OPC UA Integrated Security. Digital inputs and outputs with efficient switching capacity allow use in various applications. The up to four external antennas are supplied with a wattage of up to 2000 mW.

Параметры

Width	258.0
Height	258.0
Depth	80.0
Frequency	-
Diameter	-
Radio protocol	EPCglobal Class-1 Gen 2
Max. transmission range	8000.0
Material housing	-
Number of digital inputs	4
Number of digital outputs	4
Type of voltage (input voltage)	DC
Type of electric connection	Other
Connection for external antenna	Да
Degree of protection (IP)	IP65
Max. transmission rate, reading	400.0
Max. transmission rate, writing	400.0
