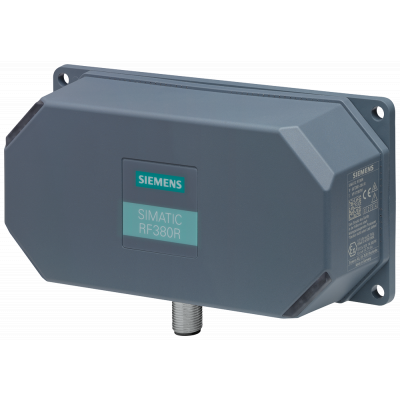

SIMATIC RF300 Reader RF380R (GEN2) RS 422/232 interface (3964R) IP67, -25 to +70 °C, 160x 80x 41 mm with integrated antenna

SIMATIC RF300 Reader RF380R (GEN2) RS 422/232 interface (3964R) IP67, -25 to +70 °C, 160x 80x 41 mm with integrated antenna Special command control is not required the autonomously read transponder data is supplied directly to the connected host system. Integrated setup help facilitates reader/transponder positioning during installation/commissioning and the determination of the ideal antenna position without additional tools. It also increases process reliability. Robustness with respect to radio frequency interference data communication that is resistant to interference with a high degree of data security. High-quality workmanship, welded housing, M12 single-connector system, without additional ground connections on the reader. RGB LED control lamps for easy visual diagnostics. Multi-transponder mode automatic detection of different transponder types. Maintenance-free data carriers with up to 64 KB of user memory with additional one-time programmable (OTP) data area up to 20 bytes. The use of low-cost ISO 15693 transponders is also possible. Extremely high-speed data transmission between read/write devices and mobile data storage units (max. 8000 bytes). Extensive status and diagnostics functions.

Параметры

Width	80.0
Height	41.0
Depth	160.0
Frequency	13.56
Diameter	-
Radio protocol	Other
Max. transmission range	200.0
Material housing	Plastic
Number of digital inputs	-
Number of digital outputs	-
Type of voltage (input voltage)	DC
Type of electric connection	Screw connection
Connection for external antenna	Нет
Degree of protection (IP)	IP67
Max. transmission rate, reading	106.0
Max. transmission rate, writing	106.0
