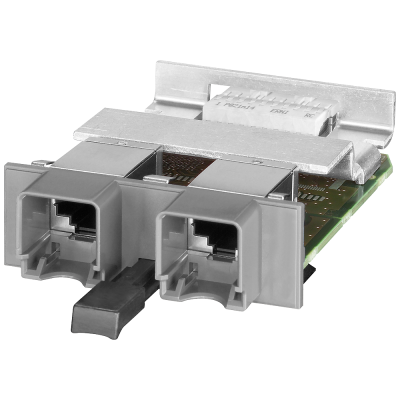

Media module MM992-2VD, 2x 10/100/1000 Mbps RJ45, with securing collar
514.08€
Включая НДС
Артикул: 6GK5992-2VA00-8AA0
Медиа модуль MM992-2VD для SCALANCE X 2 х 10/100/1000 Мбит, RJ45-порты, защ покрытие With the media module (variable distance), which is inserted into a modular Layer 2 switch or a security module, any type of two-wire cable can be used for Ethernet connections up to 1000 m: For example, ground cables, cables through fire barriers or along pipelines that can only be replaced with great difficulty. This allows a PROFINET connection of up to 300 m to be set up.Unlimited flexibility during network expansions (e.g. more terminal devices) or conversion (e.g. switching from copper to fiber-optic cables) through modular construction using media modules. Reduction of storage and maintenance costs by focusing on only a few basic unit variants.
Параметры
| Width | 60.0 |
| Height | 22.0 |
| Depth | 100.0 |
| Construction type | Other |
| Number of ports 10 Mbps BNC | 0 |
| Number of ports 10 Mbps AUI | 0 |
| Number of ports 10 Mbps of ST | - |
| Number of ports 100 Mbps SC | - |
| Number of ports 1000 Mbps SC | 0 |
| Number of ports ISDN WAN | 0 |
| Number of ports 100 Mbps MT RJ | - |
| Number of ports 1000 Mbps of MT RJ | 0 |
| Ethernet | Да |
| Fast Ethernet | Да |
| Gigabit Ethernet | Да |
| Number of ports 10 Mbps RJ45 | - |
| Number of ports 10/100 Mbps RJ45 | - |
| Number of ports 10 Gbps LC (LX) | - |
| Number of ports 10 Gbps LC (SX) | - |
| 10 Gigabit Ethernet | Нет |
| Number of ports 10/100 Mbps M12 | - |
| Number of ports 10/100/1000 Mbps RJ45 | 2 |
| Number of ports 100/1000 Mbps RJ45 | 2 |
| Number of ports 1000 Mbps LC (LX) | - |
| Number of ports 1000 Mbps LC (SX) | - |
| Number of combination-ports RJ45/Mini GBIC | 0 |
| Number of ports 10 Gbps LC (SR) | - |
| Number of ports 10 Gbps LC (LR) | - |
| Wavelength | - |
| 40 Gigabit Ethernet | Нет |
