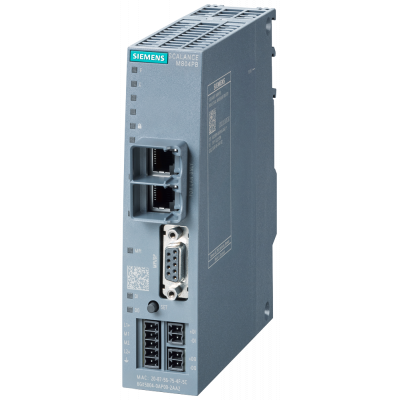

SCALANCE M804PB, router (Ethernet <-> PROFIBUS/MPI), secure remote connection

SCALANCE M804PB Router for secure remote connection of PROFIBUS / MPI programmable controllers at Ethernet networks medium VPN and firewall. Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 2-port switch 1x digital input, 1x digital output. SCALANCEM804PBVPN and firewall, transfer rate 10 Mbps, 100 Mbps, 1x RJ45 and 1x SUB-D (internal network), 1x RJ45 (external network), terminal block, 1x RS 485 interface, IP20 degree of protection.Convenient and cost-effective direct connection of existing plants with PROFIBUS/MPI to SINEMA RC (without additional devices), for a secure remote access to remote machinery and equipment.Rugged plastic enclosure for DIN rail and wall mounting. Protected remote access by means of a firewall (stateful inspection) and VPN connections (IPsec) as an integral component of the Industrial Security concept. Low investment and operating costs for operator control and monitoring of remotely connected substations. Reduction in traveling costs and personnel costs due to remote programming and diagnostics via mobile wireless networks. Improved overview for mechanical integration thanks to standardized module formats with SIMATIC S7-1500 / ET 200MP.Accessories with removable data storage medium C-Plug and Key-Plug, desktop foot for table mounting as well as mounting frames top off the product perfectly.

Параметры

Mounting method	-
Firewall	-
Radio protocol	-
UMTS	-
Analogue	-
Ethernet	-
ISDN	-
xDSL	-
Number of ports WAN	-
Number of module slots	-
Protocol	-
Number of ports 10/100 Mbps LAN	-
Empty chassis	-
USB	-
Number of ports Voice	0
VPN	-
Degree of protection (IP)	IP20
LTE	Нет
Frequency band	-
Number of ports 10/100/1000 Mbps LAN	-
