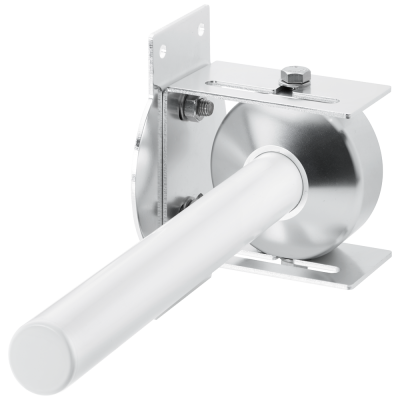

Antenna ANT793-8DL, IWLAN, railway application, directivity, 5 GHz, 14 dBi, N-female, IP66

IWLAN ANTENNA ANT 793-8DL VERTICAL-HORIZONTAL POLARIZED, W. STRONG DIRECTION. EFFICIENCY INCL. 2X N-FEMALE SOCKET,14DBI, IP65 (-45-+70 DGR C), 5GHZ, SUITABLE FOR RAIL APPLICATIONS, WI-FI COMPLIANCE AND PLEASE NOTE NATIONAL APPROVALS, WALL OR MAST MOUNTING, COMPACT MANUAL ON PAPER GERMAN/ENGLISH, SCOPE OF SUPPLY: 1X ANT793-8DL, 1X MOUNTING ALIGNMENT AID Enhanced data throughput and increased reliability of the wireless connection through selective use of multiple path propagation. Two data streams can be transmitted simultaneously. –High passive amplifications and long ranges (bridging long distances) thanks to the concentration of the radio field and the small opening angle. The radio field is concentrated into a tight cone. Investment security through compliance with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.

Параметры

Mounting method	Wall mounting
Width	100.0
Height	283.0
Depth	40.0
Connection type	Bus
Connection	N
Max. transmission range	-
Length of connection cable	-
Aerial gain	-
Indoor	Да
With connection cable	Нет
Outdoor	Да
Degree of protection (IP)	IP66
Polarization	-
Ambient temperature during operating	-40
Frequency band	5 GHz
Beam angle horizontal	-
Beam angle vertical	-
MIMO (Multiple-Input Multiple-Output )	Нет
