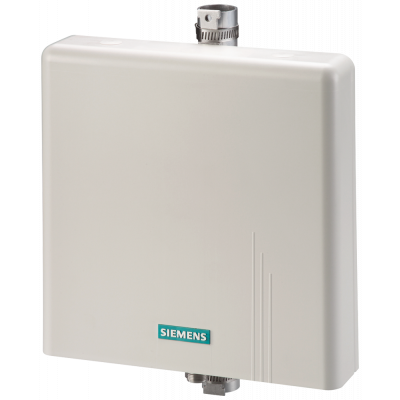

Antenna ANT 792-8DN, IWLAN, directivity, 2.4 GHz, 14 dBi, N-female, IP23
287.64€
Включая НДС
Артикул: 6GK5792-8DN00-0AA6
SIMATIC NET, IWLAN АНТЕННА ANT 792-8DN С УЗКОНАПРАВЛЕННОЙ ХАРАКТЕРИСТИКОЙ, КОЭФФИЦИЕНТ УСИЛЕНИЯ, ВКЛЮЧАЯ N-РОЗЕТКУ: 14 DBI, IP23, ДЛЯ ВНЕШНЕГО МОНТАЖА, -20-+60ГРАД. ЦЕЛЬС., 2.4GHZ WI-FI СОВМЕСТИМОСТЬ И НАЦИОНАЛЬНЫЕ РАЗРЕШЕНИЯ, МОНТАЖ НА МАЧТЕ ИЛИ СТЕНЕ, К High passive amplifications and long ranges (bridging of long distances) thanks to the concentration of the radio field and the small opening angle. The radio field is concentrated into a tight cone. Investment security through compliance with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
Параметры
| Mounting method | Mast mounting |
| Width | 200.0 |
| Height | 200.0 |
| Depth | 43.0 |
| Connection type | Bus |
| Connection | N |
| Max. transmission range | 1000.0 |
| Length of connection cable | - |
| Aerial gain | - |
| Indoor | Да |
| With connection cable | Нет |
| Outdoor | Да |
| Degree of protection (IP) | IP23 |
| Polarization | - |
| Ambient temperature during operating | -40 |
| Frequency band | - |
| Beam angle horizontal | - |
| Beam angle vertical | - |
| MIMO (Multiple-Input Multiple-Output ) | Нет |
