IWLAN AP, 450 Mbps, M12, 1x wireless, 3x N-Connect, PLUG slot
1 468.80€
Включая НДС
Артикул: 6GK5788-1GD00-0AA0

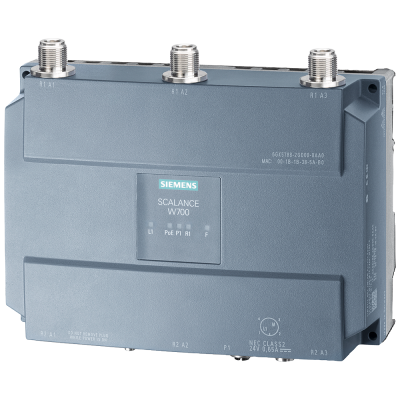

Точка доступа W788-1M12 IEEE 802.11A/B/G/H/N, 2.4/5Ггц, 450Mбит/с, 1 X M12, 24VDC, IP20, POE, 24VDC, IP65 (-40-+60 C), POE, WPA2/802.11 SCALANCE W788-1 M12 1x wireless, 3x N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per wireless, 1x M12 max. 1 Gbps, PoE, redundant 24 V DC, M12 A-coded IP65, temperature range -20 °C - +60 °C, plug slot, for operation outside the US/Israel. Access Point is suitable for indoor installation without a control cabinet. 1 unit.Access Point with one built-in wireless interface for setting up wireless connections. The devices are designed for industrial applications indoors without control cabinets.The devices with rugged aluminum housing are shock- and vibration-proof, for high mechanical requirements. Thanks to IP65 degree of protection, there is high protection against dust and water jets. The product is ideally suited for conditions with large temperature differences. 3x3 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 450 Mbps. Optional activation of additional functions (iFeatures) via removable data storage medium (plug) possible.The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
| Colour | - |
| Width | .2 |
| Height | .176 |
| Depth | .079 |
| Max. data transmission rate | 450.0 |
| Wall mounting | Да |
| Firewall | - |
| Managed | Да |
| Radio protocol | IEEE 802.11 a |
| Built-in | Нет |
| Ethernet | Да |
| Suitable for 19 inch mounting | Нет |
| Number of ports 10/100 Mbps LAN | 1 |
| Number of ports 1000 Mbps Mini GBIC | - |
| Connection for external antenna | Да |
| Bridge function | Да |
| Power over Ethernet | Да |
| Repeater function | Да |
| Encoding | IEEE 802.11 i |
| VPN-security | - |
| Degree of protection (IP) | IP65 |
| Ceiling mounting | Нет |
| Suitable for DIN rail (top hat rail) mounting | - |
| Flush-mounted installation | Нет |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Pole fastening | Нет |
| Frequency band | 2.4 GHz and 5 GHz |
| Number of ports 10/100/1000 Mbps LAN | 1 |
| Socket outlet adapter | Нет |
| Number of AP's supported | - |
| Firewall throughput | 0.0 |
| Number of users | 8 |
