IWLAN Access Point, 450 Mbps, RJ45, 1x wireless, 3x R-SMA, PLUG slot
1 193.40€
Включая НДС
Артикул: 6GK5788-1FC00-0AA0

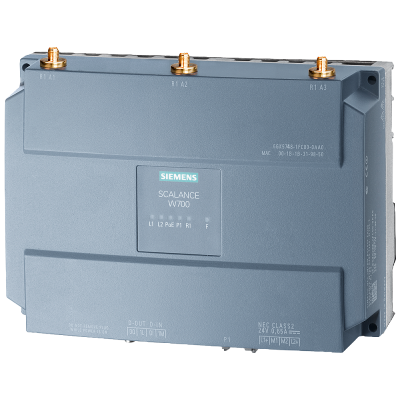

Точка доступа W788-1 RJ45 IEEE 802.11A/B/G/H/N, 2.4/5Ггц, 450Mбит/с, 1 X RJ45, 2X24VDC, IP20, POE, 24VDC, IP65 (-40-+60 C), POE, WPA2/802.11 SCALANCE W788-1 RJ45 1x wireless, 3x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per wireless, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, terminal block, IP30, temperature range -20 °C - +60 °C, plug slot, for operation outside the US/Israel. Access Point for installation in the control cabinet in industrial plants. 1 unit.Access Point with one built-in wireless interface for setting up wireless connections with iFeatures. The devices are suitable for installation in control cabinets in industrial plants, such as suspended monorails and automatic guided vehicle systems, and enable wireless commissioning in the plant.The devices with rugged aluminum housing are shock- and vibration-proof and are therefore suitable for high mechanical requirements. 3x3 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 450 Mbps. For use at ambient temperatures from -20 °C to +60 °C. Optional activation of additional functions (iFeatures) via removable data storage medium (plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
| Colour | - |
| Width | .2 |
| Height | .158 |
| Depth | .079 |
| Max. data transmission rate | 450.0 |
| Wall mounting | Да |
| Firewall | - |
| Managed | Да |
| Radio protocol | IEEE 802.11 a |
| Built-in | Нет |
| Ethernet | Да |
| Suitable for 19 inch mounting | Нет |
| Number of ports 10/100 Mbps LAN | 1 |
| Number of ports 1000 Mbps Mini GBIC | - |
| Connection for external antenna | Да |
| Bridge function | Да |
| Power over Ethernet | Да |
| Repeater function | Да |
| Encoding | IEEE 802.11 i |
| VPN-security | - |
| Degree of protection (IP) | Other |
| Ceiling mounting | Нет |
| Suitable for DIN rail (top hat rail) mounting | - |
| Flush-mounted installation | Нет |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Pole fastening | Нет |
| Frequency band | 2.4 GHz and 5 GHz |
| Number of ports 10/100/1000 Mbps LAN | 1 |
| Socket outlet adapter | Нет |
| Number of AP's supported | - |
| Firewall throughput | 0.0 |
| Number of users | 8 |
