IWLAN AP, 450 Mbps, RJ45, 1x wireless, 3x R-SMA, PLUG slot
1 603.44€
Включая НДС
Артикул: 6GK5786-1FC00-0AA0

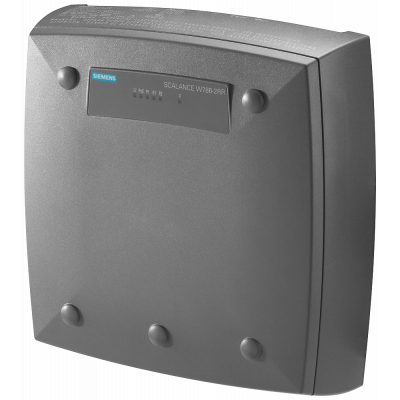

Точка доступа SCALANCE W786-1 RJ45 IEEE 802.11A/B/G/H/N, 2.4/5Ггц, 450Mбит/с, 1 X RJ45, 2X24VDC, IP20, POE, 24VDC, IP65 (-40-+60 C), POE, WPA2/802.11 SCALANCE W786-1 RJ45 1x wireless, 3x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per wireless, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, terminal block, 110 - 230 V AC, IP65, temperature range -40 °C - +60 °C, plug slot, for operation outside the US/Israel. For applications with demanding climatic requirements when installed outdoors and in areas accessible to the public. 1 unit.Very robust Access Point with a built-in wireless interface for usage in demanding climatic requirements, such as when installed outdoors and in areas accessible to the public.Specifically designed for outdoor use: rugged, impact-resistant plastic enclosure, shock and vibration-proof for demanding mechanical requirements. High IP65 degree of protection against dust and water jets as well as extended temperature range from -40 °C to +60 °C. The device is resistant to condensation, UV radiation, and salt spray. Resistant to destruction through connections within the device. 3x3 MIMO technology for stable wireless connections. Optional activation of additional functions (iFeatures) via removable data storage medium (plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
| Colour | - |
| Width | .251 |
| Height | .251 |
| Depth | .072 |
| Max. data transmission rate | 450.0 |
| Wall mounting | Да |
| Firewall | - |
| Managed | Да |
| Radio protocol | IEEE 802.11 a |
| Built-in | Нет |
| Ethernet | Да |
| Suitable for 19 inch mounting | Нет |
| Number of ports 10/100 Mbps LAN | 1 |
| Number of ports 1000 Mbps Mini GBIC | - |
| Connection for external antenna | Да |
| Bridge function | Да |
| Power over Ethernet | Да |
| Repeater function | Да |
| Encoding | IEEE 802.11 i |
| VPN-security | - |
| Degree of protection (IP) | IP65 |
| Ceiling mounting | Нет |
| Suitable for DIN rail (top hat rail) mounting | - |
| Flush-mounted installation | Нет |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Pole fastening | Да |
| Frequency band | 2.4 GHz and 5 GHz |
| Number of ports 10/100/1000 Mbps LAN | 1 |
| Socket outlet adapter | Нет |
| Number of AP's supported | - |
| Firewall throughput | 0.0 |
| Number of users | 8 |
