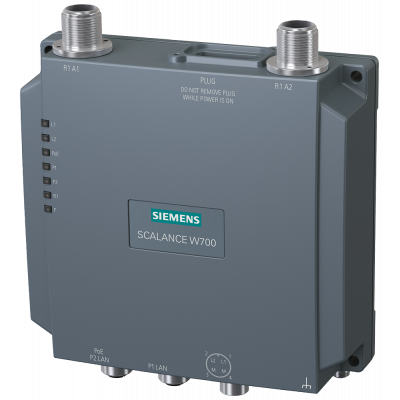

IWLAN AP, 300 Mbps, 2x M12, 1x wireless, 2x N-CON, plug slot, EEC

IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via key plug, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 70 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN 45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 Scope of delivery: Manuals on CD-ROM, English/German M12 sealing caps, for operation outside of USA/Israel SCALANCE W778-1 M12 EEC 1x wireless, 2x N-CON antenna port, coated printed circuit boards (conformal coating), iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, IP65, temperature range -30 °C - 70 °C, plug slot, for operation outside the US. For setting up Industrial Wireless LAN (IWLAN) wireless networks and for applications outside the control cabinet. 1 unit.The Access Point is suitable for use in general industrial and automation applications, but especially for extended ambient conditions such as in the rail transport environment.The devices offer various mounting options using a DIN rail mounting adapter, angled adapter or direct wall mounting with screws. Can be used under harsh environmental conditions thanks to coated printed circuit boards (conformal coating) and an extended temperature range. Reliable wireless link by using MIMO technology and monitoring the wireless link. Predictable data traffic (deterministic response) and defined response times on the wireless link. In addition, the device increases security in the network in combination with KEY-PLUG W700 Security when Inter AP-Blocking is activated. Optional activation of additional functions (iFeatures) via removable data storage medium (KEY plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.

Параметры

Colour	-
Width	.14
Height	.149
Depth	.045
Max. data transmission rate	300.0
Wall mounting	Да
Firewall	-
Managed	Да
Radio protocol	IEEE 802.11 a
Built-in	Нет
Ethernet	Да
Suitable for 19 inch mounting	Нет
Number of ports 10/100 Mbps LAN	2
Number of ports 1000 Mbps Mini GBIC	-
Connection for external antenna	Да
Bridge function	Да
Power over Ethernet	Да
Repeater function	Да
Encoding	IEEE 802.11 i
VPN-security	-
Degree of protection (IP)	IP65
Ceiling mounting	Нет
Suitable for DIN rail (top hat rail) mounting	-
Flush-mounted installation	Нет
Number of ports 10 Gbps Mini GBIC	0
Pole fastening	Нет
Frequency band	2.4 GHz and 5 GHz
Number of ports 10/100/1000 Mbps LAN	0
Socket outlet adapter	Нет
Number of AP's supported	-
Firewall throughput	0.0
Number of users	28
