IWLAN AP, 300 Mbps, 2x M12, 1x wireless, 2x N-CON, plug slot
1 205.64€
Включая НДС
Артикул: 6GK5778-1GY00-0AA0

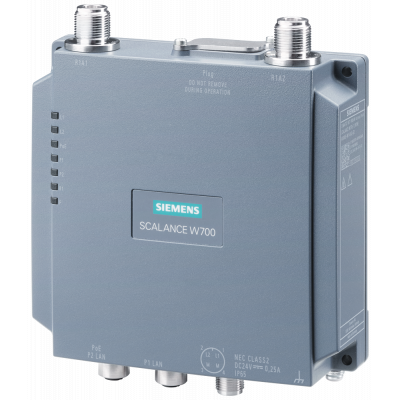

IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via key plug, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 Scope of delivery: Manuals on CD-ROM, English/German M12 sealing caps, for operation outside of USA/Israel SCALANCE W778-1 M12 1x wireless, 2x N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, IP65, temperature range -20 °C - 60 °C, plug slot, for operation outside the US. For installation without a control cabinet of IWLAN wireless networks in industrial plants. 1 unit.Access Point is suitable for simple, space-saving, cabinet-free, on-site installation in industrial and automation applications.Compact aluminum housing, shock and vibration resistant, for stringent mechanical requirements. Implementation of simple and cost-effective wireless machine networking in IP65 protection. Predictable data traffic (deterministic response) and defined response times on the wireless link as well as reliable wireless connection through use of the MIMO technology and monitoring of the wireless connection. Optional activation of additional functions (iFeatures) via a KEY plug.The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
Colour | - |
Width | .14 |
Height | .149 |
Depth | .045 |
Max. data transmission rate | 300.0 |
Wall mounting | Да |
Firewall | - |
Managed | Да |
Radio protocol | IEEE 802.11 a |
Built-in | Нет |
Ethernet | Да |
Suitable for 19 inch mounting | Нет |
Number of ports 10/100 Mbps LAN | 2 |
Number of ports 1000 Mbps Mini GBIC | - |
Connection for external antenna | Да |
Bridge function | Да |
Power over Ethernet | Да |
Repeater function | Да |
Encoding | IEEE 802.11 i |
VPN-security | - |
Degree of protection (IP) | IP65 |
Ceiling mounting | Нет |
Suitable for DIN rail (top hat rail) mounting | - |
Flush-mounted installation | Нет |
Number of ports 10 Gbps Mini GBIC | 0 |
Pole fastening | Нет |
Frequency band | 2.4 GHz and 5 GHz |
Number of ports 10/100/1000 Mbps LAN | 0 |
Socket outlet adapter | Нет |
Number of AP's supported | - |
Firewall throughput | 0.0 |
Number of users | 28 |
